Filterless readers provide consistent results with steady temperature regulation

Four different SpectraMax® absorbance microplate readers provide the flexibility, sensitivity, and convenience for a wide range of assays such as ELISAs, microbial growth, and protein quantitation. All readers feature an 8-channel read head for fast reads and a subset feature our patented PathCheck™ Sensor for automatic pathlength calculation. Combined with a wide application base, industry-leading SoftMax® Pro Software and validation tools, these readers fit every budget.

  • Eliminate filters

    Eliminate filters

    Eliminate the need for purchasing and changing out filters with a monochromator-based wavelength selection for visible and UV-visible absorbance.

  • Get consistent results

    Get consistent results

    Mix samples thoroughly in microplate wells with user-programmable Automix feature and monitor temperature-sensitive reactions with consistent temperature regulation from ambient to 45°C.

  • Integrate with ease

    Integrate with ease

    Integrate seamlessly with StakMax® Microplate Stacker within minutes. Integrate with all leading partner robots and with our out-of-the-box automation solution.

Features

  • Pipetting errors eliminated

    This reader utilizes Molecular Devices' patented PathCheck® Sensor to measure the depth (optical pathlength) of samples in a microplate. It also allows for the elimination of standard curves.

  • Optimized optical path

    The reader’s unique quartz fiber optic system minimizes stray light for precise readings across a microplate. The spectral resolution ensures accuracy of DNA absorbance measurements.

  • Eight-channel optics

    The optical design of the reader mimics a dual-beam spectrophotometer. Each well has its own sample beam and reference detector. The eight-channel system delivers both precision and speed across the microplate.

  • Dual wavelength reads

    The reader delivers high performance with round-bottom, flat-bottom or half-area well plates. Dual wavelength readings report the actual absorbance at each wavelength making data analysis convenient.

Applications of Absorbance Microplate Readers

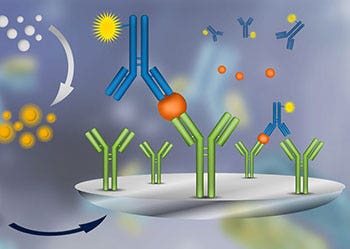

  • ELISA

    Enzyme-linked immunosorbent assays (ELISAs) are used to measure the amount of a specific protein, typically in a microplate format, and results are most often detected via absorbance in the visible wavelength range. Chemiluminescent and fluorescent ELISA formats offer enhanced sensitivity for accurate quantitation of less abundant analytes.

    Read Application Note

  • Cell Viability

    Cell viability can be assessed by examining parameters such as cell membrane integrity or the activity of cellular enzymes. On a microplate readers, these parameters can be detected using fluorescent reagents. For example, a red cell-impermeant, DNA-binding dye only stains dead or dying cells whose membranes are compromised, while a green live-cell dye only fluoresces when metabolic enzymes are active.

Specifications & Options of Absorbance Microplate Readers

Resources of Absorbance Microplate Readers

Absorbance Microplate Readers

SpectraMax® 340PC384 Microplate Reader

Product

Part Number

340PC384 Microplate Reader 340PC 384
 SpectraTest ABS1 Absorbance Validation Plate 0200-6117
StakMax Microplate Handling Stacker StakMax
Microplate Reader Shelf 9000-0756



SpectraMax® Plus 384 Microplate Reader

Product Part Number
SpectraMax Plus 384 Microplate Reader PLUS 384
SpectraTest ABS1 Absorbance Validation Plate 0200-6117
StakMax Microplate Handling Stacker StakMax
Quartz 96-well microplate for UV measurements R8024
Quartz 96-well half-area microplate for UV measurements R8028
SpectraDrop™ Micro-Volume Microplate Starter Kit 0200-6262
SpectraDrop™ Micro-Volume Microplate HTS Kit 0200-6267
Cuvette Validation Set 0200-2420
Microplate Reader Shelf 9000-0756



 SpectraMax® 190 Microplate Reader

Product

Product Number

SpectraMax 190 Microplate Reader with SoftMax Pro Software 190
SpectraTest ABS1 Absorbance Validation Plate 0200-6117
Quartz 96-well Microplate for UV Measurements R8024
Quartz 96-well Half-area Microplate for UV Mmeasurements R8028
SpectraDrop™ Micro-Volume Microplate Starter Kit 0200-6262
SpectraDrop™ Micro-Volume Microplate HTS Kit 0200-6267
StakMax Microplate Handling Stacker StakMax
Microplate Reader Shelf 9000-0756





VersaMax ELISA Microplate Reader

Product

Part Number

VersaMax ELISA Microplate Reader VERSAMAX
 SpectraTest ABS1 Absorbance Validation Plate 0200-6117
StakMax Microplate Handling Stacker StakMax
Microplate Reader Shelf 9000-0756
