High-content confocal imaging solution with water objective options



The ImageXpress® Micro Confocal system is a high-content solution that can switch between widefield and confocal imaging of fixed and live cells. It can capture high quality images of whole organisms, thick tissues, 2D and 3D models, and cellular or intracellular events. The spinning disk confocal and sCMOS camera enable imaging of fast and rare events like cardiac cell beating and stem cell differentiation. With MetaXpress software and flexible options like water immersion objectives to choose from, the system enables many confocal imaging applications from 3D assay development to screening.

  • Images Icon

    Acquire higher quality images

    Capture excellent contrast, high resolution images with our proprietary AgileOptix™ spinning disk confocal technology, wide field of view, and bright light source.

  • Customizable Icon

    Customize image acquisition and analysis

    Take ultimate control over acquisition and analysis parameters, which enables many applications from 3D structure analysis to target imaging of specific objects within an organism or cell populations. Run more applications with standard options like water immersion objectives, environmental control, or any of our high-performance customizations.

  • Analysis Icon

    Analyze more data in less time

    MetaXpress® PowerCore™ software accelerates analysis speed in a high-throughput environment. The software distributes image processing jobs to a multi-CPU environment.

ImageXpress Micro Confocal Virtual Tour

ImageXpress Micro Confocal Virtual Tour

Features

  • Breadth Icon

    Wide dynamic range

    Quantify low and high intensity signals in a single image with >3 log dynamic range intensity detection.

  • Optics Icon

    Exclusive AgileOptix spinning disk confocal

    The technology provides increased sensitivity with specially designed optics, high-powered, solid state light engines, and sCMOS sensor. Swappable disc geometries provide flexibility between speed and resolution.

  • Accuracy Icon

    Wide field of view

    Wide field of view enables whole-well confocal imaging and eliminates missed targets.

  • Automation Icon

    Optional on-board robotic fluidics

    For assays that involve compound addition, well washing, and media exchange, optional on-board robotic fluidics are available.

  • Measure Icon

    Accurate 3D measurements

    MetaXpress 3D analysis module is optimized for confocal imaging, enabling 3D measurements of volume and distance.

  • Expandable Icon

    Multiple imaging modes

    The system offers phase contrast and brightfield label-free imaging, fluorescence, widefield, colorimetric, and confocal imaging, as well as, water immersion imaging as a standard option.

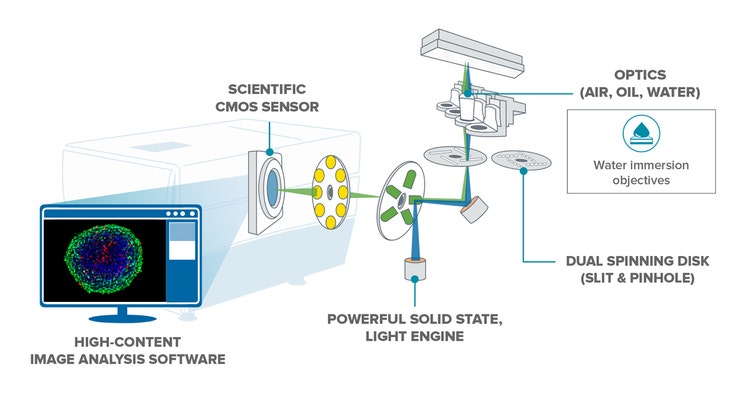

AgileOptix™ technology

Our proprietary AgileOptix technology enables the ImageXpress Micro Confocal system to deliver the sensitivity and throughput needed for demanding applications. AgileOptix is the combination of a powerful solid state, light engine, specially designed optics, scientific CMOS sensor, and the ability to change disk geometries.

AgileOptix Technology for ImageXpress Micro Confocal
View options









Introducing the MetaXpress 3D Analysis Toolkit

MetaXpress high-content image aquisition and analysis software



  • Meet high throughput requirements with a scalable, streamlined workflow
  • Adapt your analysis tools to tackle your toughest problems, including 3D analysis
  • Schedule automatic data transfer between third-party hardware sources and secure database
  • Set up hundreds of routinely used HCS assays using MetaXpress software modules
Learn More View Modules









Cellular Image Gallery

Micro Confocal High-Content Imaging System
ImageXpress High-content imaging solution
ImageXpress Micro Confocal Imaging System
ImageXpress Micro Imaging System
Micro Confocal Imaging System

†Data and images were acquired during development using customer samples. Results may vary. Highlighted features’ price, time to deliver, and specifications will vary based on mutually agreed technical requirements. Solution requirements may cause adjustment to standard performance.
