Time-Resolved Fluorescence (TRF)

Fluorescence intensity (FI) measurements use standard fluorophores like fluorescein, whose emission is short-lived, on the order of nanoseconds. Excitation of the sample and measurement of emission occur simultaneously. Although microplate readers are very good at screening out excitation light from the emission measurement, that excitation light, along with short-lived light emitted by materials in the well or sample, often contributes to high background.

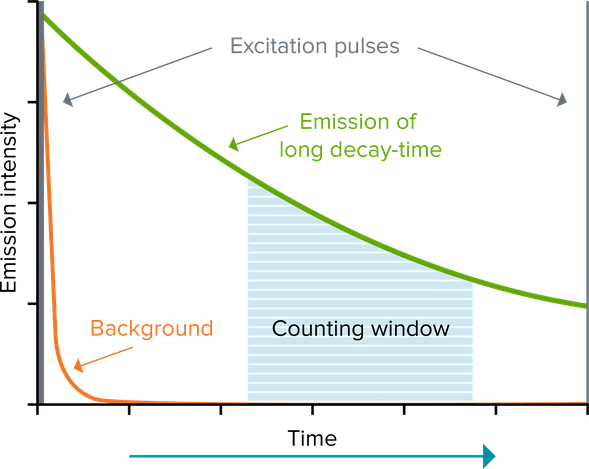

Time-resolved fluorescence (TRF) reduces background by using a lanthanide fluorophore, such as europium or terbium, that emits long-lived fluorescence. This long-lived fluorescence lasts for milliseconds, so excitation of the fluorophore by a pulsed light source (e.g., a flash lamp), followed by a delay and then signal measurement (‘counting window’), allows short-lived fluorescence (lasting only for nanoseconds) to subside before a measurement is made. Assays using time-resolved fluorescence offer dramatically reduced signal-to-noise ratios. The most frequently used lanthanides are europium, terbium and samarium. These are commonly used as chelate or cryptate complexes that enable good signal intensity and stability.





​​​​​​time-resolved-fluorescence

Time-Resolved Fluorescence Resonance Energy Transfer (TR-FRET)



htrf-camp​​​​​

no FRET

Donor and acceptor are distant

FRET

Donor and acceptor are inclose proximity

TR-FRET combines the time-resolved (TR) measurement of fluorescence with fluorescence resonance energy transfer (FRET) technology. In FRET assays, biomolecules (e.g., proteins) are labeled with donor and acceptor fluorophores. When the biomolecules interact, donor and acceptor fluorophores are brought close together. Now, when the donor is excited, it can transfer its emission energy to the acceptor, which in turn emits fluorescence at a specific wavelength. Acceptor and donor fluorescence emissions have different wavelengths that can be distinguished from each other by a microplate reader, enabling quantitation of the biomolecular interaction.

Using lanthanide fluorophores, which have long-lived fluorescence emission, as donors, TR-FRET assays take advantage of the time-resolved measurement of fluorescence to eliminate short-lived background fluorescence. In a TR-FRET assay, thanks to the donor fluorophore’s long-lived emission, excitation and emission of both donor and acceptor fluorophores can also be measured after short-lived background fluorescence has abated.

Homogeneous Time-Resolved Fluorescence (HTRF)

TR-FRET​​​​​

HTRF is a versatile TR-FRET technology developed by Cisbio for detecting biomolecular interactions. A typical HTRF assay uses a europium cryptate as the donor, and the organic fluorophore d2 as the acceptor. The donor and acceptor can be used to label a variety of biomolecules, for applications including epigenetics, biomarker quantification, GPCR signaling, and much more. HTRF assays require a microplate reader with TRF detection mode that is certified HTRF-compatible by Cisbio.

Customer Breakthroughs

iTeos uses our multi-mode microplate readers to identify therapeutics that target the immune tumor micro-environment

Learn more



Advantages and Considerations

A key benefit of TRF and TR-FRET detection includes decreased background and increased signal-to-noise ratio compared to standard fluorescence, resulting in higher sensitivity. In addition, the assay has a robust mix-and-read format that does not require any washing. This, along with the assay’s stability, makes it easy to automate and miniaturize for screening applications.



Applications and Assays

TRF and TR-FRET (HTRF) assays enable the analysis of molecular interactions in biochemical processes and are widely used to study kinase assays, cellular signaling pathways, protein-protein interactions, DNA-protein interactions, cell cytotoxicity and receptor-ligand binding.

Example assays for TR-FRET are outlined in the table to the right, along with several time-resolved fluorescence resources below.


Assay Donor Acceptor Wavelengths
HTRF-Eu/red* Europium cryptate XL665 or d2 Ex320 Em1 620/Em2 665
HTRF-Tb/red* Terbium cryptate XL665 or d2 Ex340 Em1 620/Em2 665
HTRF-Tb/green* Terbium cryptate fluorescein or GFP Ex340 Em1 620/Em2 520
Lanthascreen Tb** Terbium chelate fluorescein Ex340 Em1 490/Em2 520
Lanthascreen EU** Europium chelate Alexa Fluor 647 Ex320 Em1 620/Em2 665
LANCE (original)*** Europium chelate Surelight® APC Ex320 Em1 620/Em2 665
LANCE Ultra*** Europium chelate ULight Ex320 Em1 620/Em2 665

​​​​​​

  • HTRF assay

    HTRF assay

    HTRF assays from Cisbio have evolved to encompass the areas of G protein-coupled receptors, kinases and cell signaling, epigenetics, and biomarkers. A wide variety of toolbox reagents and kits are available to address protein-protein interactions, nuclear receptor assays, receptor dimerization, ligand binding, receptor internalization, enzyme assays, and many more.

    HTRF involves the use of two fluorophores, a donor and an acceptor, to label proteins or other biomolecules of interest. When the biomolecules interact, their proximity enables fluorescence resonance energy transfer (FRET) to occur from the donor to the acceptor fluorophore. Using long-lifetime fluorescent lanthanide cryptates as donors allows time-resolved detection of HTRF assays, minimizing short-lived background fluorescence from compounds and other materials. The detection of time-resolved FRET (TR-FRET) with a microplate reader provides a readout of biomolecular binding.

    HTRF-compatible microplate readers

    HTRF-compatible microplate readers

    Getting the best HTRF results requires a microplate reader that has been validated to meet the HTRF performance specifications set by Cisbio. A reader’s optics, energy source, and detectors, as well as the settings used to detect HTRF, all impact performance. Our readers use optimized components for HTRF detection, including an HTRF detection cartridge for the SpectraMax i3x and Paradigm Multi-Mode Microplate Readers, and an enhanced TRF module plus validated filters for the SpectraMax iD5 reader.

    Cisbio’s HTRF certification program guarantees that readers bearing the “HTRF compatible” logo meet the specifications required for optimal HTRF performance. This technical note presents the optimized settings validated by Cisbio for Molecular Devices HTRF-compatible microplate readers.

  • HTRF Human TNFα Assay

    HTRF Human TNFα Assay

    The Human TNFα assay kit enables direct quantitative determination of TNFα. It uses a sandwich immunoassay involving two specific antibodies, one anti-TNFα labeled with Eu-Cryptate and the second anti-TNFα labeled with XL665 or d2. In the presence of TNFα, both antibodies bind TNFα, bringing both labels into close proximity so that TRFRET occurs (Figure 1). Signal is proportional to the concentration of antigen in the sample.

    In this application note we show how the SpectraMax® Paradigm® Multi-Mode Microplate Reader is used to perform robust, no-wash cytokine assays with excellent Z’ factors.

    Read application note

    Normalize HTRF cytokine assays to cell viability

    Normalize HTRF cytokine assays to cell viability

    Pro- and anti-inflammatory cytokines play a central role in autoimmunity and inflammatory and infectious diseases. They are also key players in metabolic disorders and oncology, particularly the anti-tumor immune response. Homogeneous Time Resolved Fluorescence (HTRF) from Cisbio Bioassays provides a versatile platform for the quantitation of various cytokines and chemokines.

    This application note demonstrates how to perform a relevant analysis of cytokine secretion along with cell viability, using the SpectraMax i3x® Multi-Mode Microplate Reader with SpectraMax® Minimax® 300 Imaging Cytometer.

    Read application note

  • Measure oxidative metabolism and glycolytic activity

    Measure oxidative metabolism and glycolytic activity

    To survive, cells require fuel in the form of ATP to carry out most essential bioprocesses. This fuel is generated through glycolysis and mitochondrial respiration. While both produce ATP, glycolysis can function in the absence of oxygen, whereas mitochondria require oxygen for the final step in oxidative phosphorylation (OXPHOS).

    Benefits of the application note:

    • Real-time measurement of extracellular oxygen depletion and acidification in cultured cells and microorganisms
    • Sensitive TRF detection of two simple, mix-and-measure assay workflows
    • Faster data acquisition and analysis with preconfigured SoftMax Pro protocols

    Read application note

    HTRF cAMP dynamic 2 and IP-One assays

    HTRF cAMP dynamic 2 and IP-One assays

    HTRF assay performance on the SpectraMax M5e reader is demonstrated here with two dierent HTRF assay kits, cAMP dynamic 2 and IP-One. G-protein coupled receptors signal through two major pathways, regulation of cAMP and increase in intracellular calcium levels mediated by IP3. With the cAMP dynamic 2 kit, cAMP levels are detected using a Eu cryptate-labeled monoclonal anti-cAMP antibody and d2-labeled cAMP. The IP-One assay has a similar format and uses a monoclonal antibody specific to IP1, a more stable downstream metabolite of IP3 that accumulates in signaling cells in the presence of lithium chloride.

    This application note presents both cell-based assay data and standard curves generated with the cAMP dynamic 2 and IP-One kits. These HTRF data demonstrate the excellent dynamic range and Z’ factors2 obtainable with the SpectraMax M5e reader.

    Read application note

  • HTRF cAMP HiRange Assay

    HTRF cAMP HiRange Assay

    Please click here to enlarge image.

    The HTRF cAMP HiRange kit enables quantitation of cyclic AMP (cAMP, cyclic adenosine 3’, 5’–monophosphate) in cellular samples. cAMP is a key second messenger in G protein-coupled receptor (GPCR) signaling. Upon ligand binding to a GPCR, a conformational change occurs, activating the receptor and in turn activating a G protein.

    In this application note we show how the SpectraMax® Multi-Mode Microplate Readers are used to perform robust, high-throughput HTRF® assays with excellent Z’ factors and highly reproducible EC50 values.

    Read application note

    Optimized settings for Transcreener TR-FRET assays

    Transcreener TR-FRET assays

    The Transcreener® TR-FRET Assays are single step, competitive immunoassays for direct detection of nucleotides with a far-red time resolved Förster resonance energy transfer (TR-FRET) readout. Learn how to optimize settings for Transcreener TR-FRET assays on the SpectraMax iD5 and i3x multi-mode microplate readers.

    Read application note

  • Ruthenium-Based TRF Assay for High-Throughput cAMP Detection

    Ruthenium-Based TRF Assay

    Compared to traditional immunoassay methods which are typically time-consuming and laborious, the single-step, wash-free homogeneous immunoassays have been of high interest to researchers. In this study, we report a ruthenium-based time-resolved fluorescence method for the high-throughput detection of cAMP in research and drug discovery settings.

    Download Poster

    Custom Ruthenium Nano-TRF Detection Platform

    Ruthenium Nano-TRFDetection Platform

    News: Molecular Devices Partners with Roche to Develop Custom Ruthenium Nano-TRF Detection Platform

    The custom technologies arm of Molecular Devices has partnered with the Discovery Technologies team, pRED at Roche to develop a high-throughput detection system for drug discovery screens employing Roche’s proprietary Ruthenium-based nanosecond time resolved fluorescence (Nano-TRF®) assays. The pRED screening teams are installing the custom-developed Nano-TRF® cartridge in their existing Molecular Devices SpectraMax® Paradigm® multimode microplate readers.

    Learn more
