Capture large 3D organoid and spheroid images with up to double the speed

The ImageXpress® Confocal HT.ai High-Content Imaging System utilizes a seven-channel laser light source with eight imaging channels to enable highly multiplexed assays while maintaining high throughput by using shortened exposure times. Water immersion objectives improve image resolution and minimize aberrations so scientists can see deeper into thick samples.

The powerful combination of MetaXpress® software and IN Carta™ software simplifies workflows for advanced phenotypic classification and 3D image analysis with machine learning capabilities and an intuitive user interface.

  • Enable greater assay flexibility

    Enable greater assay flexibility

    Eight imaging channels with laser excitation enable more assay flexibility, higher image brightness, and flexibility to use targeted imaging such as QuickID. Automated Water Immersion objectives offer greater numerical aperture and matched refractive index between the sample and the immersion media for enhanced resolution and decreased aberrations.

  • Increase throughput with higher quality images

    Increase throughput with higher quality images

    Higher excitation power provides increased signal, shorter exposure times, and faster acquisitions of 3D samples. Micro-lens enhanced spinning disk confocal provides a flat field of view for more accurate and reproducible image analysis. Shorter exposure times generates up to a two-fold boost in scan speed. FRET experiments using lasers for CFP and YFP expand research.

  • Accelerate analysis speeds

    Accelerate analysis speeds

    IN Carta Image Analysis Software performs complex segmentation and classification. Phenoglyphs provides a robust trainable classification, and SINAP provides trainable segmentation for any image type. Accelerate analysis speeds by 40X with multi-threaded, parallel processing with MetaXpress® PowerCore Software. Reduces time from hours to minutes, eliminating 3D analysis as a bottleneck.

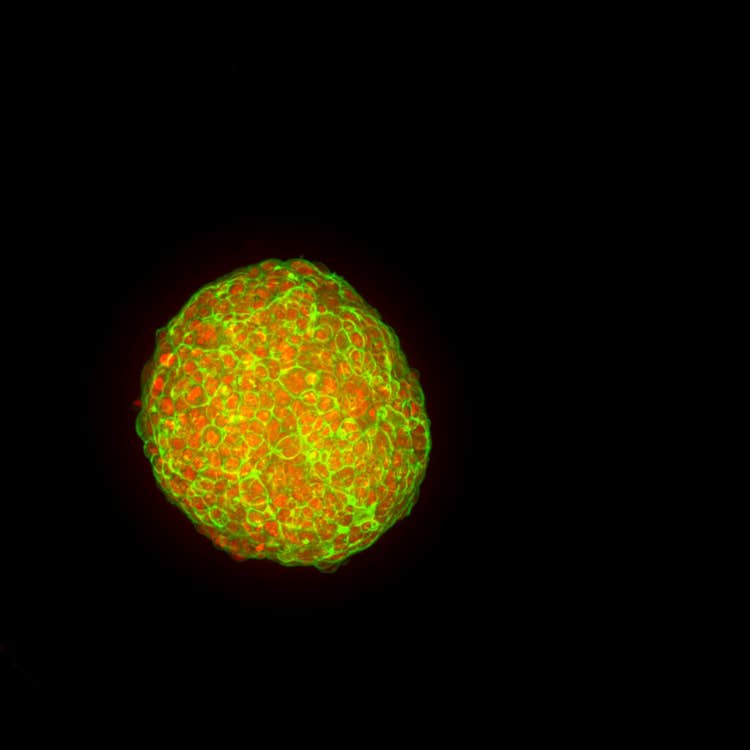

Masked Spheroid

Masked Spheroid

Features

  • High-intensity laser light source

    High-intensity laser light source

    Quantify low and high intensity signals in a single image with >3 log dynamic range intensity detection.

  • Accurate 3D measurements

    Accurate 3D measurements

    MetaXpress 3D analysis module is optimized for confocal imaging, enabling 3D measurements of volume and distance.

  • Wide field of view

    Wide field of view

    Wide field of view enables whole-well confocal imaging and eliminates missed targets. Next-generation dual microlens enhanced spinning disk technology provides a large, flat field of view for more accurate and reproducible analysis.

  • Exclusive AgileOptix™ spinning disk technology

    Exclusive AgileOptix™ spinning disk technology

    Provides increased sensitivity with specially designed optics, high-powered laser illumination, and sCMOS sensor. Swappable disk geometries provide flexibility between speed and resolution.

  • IN Carta Image Analysis Software

    IN Carta Image Analysis Software

    Leverages machine learning to improve the accuracy and robustness of high-content image analysis, delivering data insights that other technologies miss. Reduces the complexity of image analysis with intuitive guided workflows in a modern user interface.

  • Multiple imaging modes

    Multiple imaging modes

    The system offers phase contrast and brightfield label-free imaging, fluorescence, widefield, and confocal imaging with water immersion optics as a standard option.

  • Automated water immersion objective technology

    Automated water immersion objective technology

    Offers greater image resolution and sensitivity with up to 4x increase in signal leading to lower exposure times.

  • Wide dynamic range

    Wide dynamic range

    Quantifies low and high intensity signals in a single image with >3 log dynamic range intensity detection.










Images taken with same exposure times show different average intensities









IN Carta image analysis software

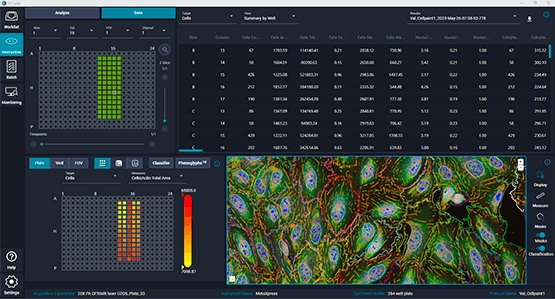

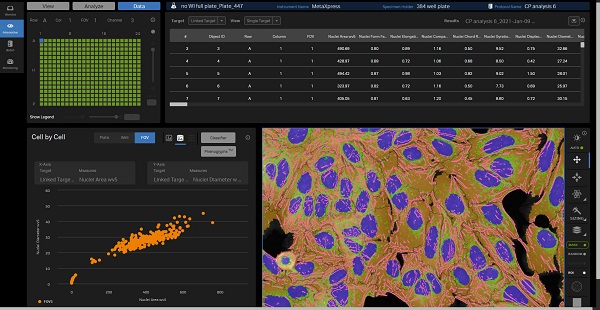

Powerful analytics combined with an intuitive user interface simplify workflows for advanced phenotypic classification and/or 3D image analysis. Advanced features provide the functionality to analyze data at scale and deliver real-time insights without the need for complex pre- or post-processing operations. Machine learning performs complex classification automatically with the optional Phenoglyphs module.

Learn more about IN Carta

IN Carta image analysis software

















Cellular Image Gallery

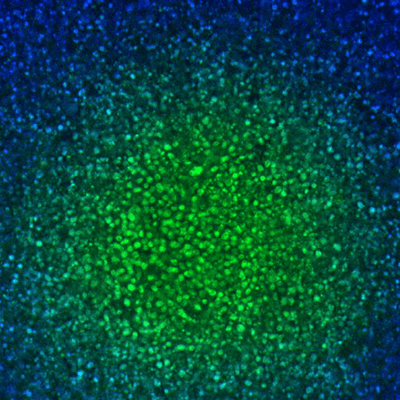

HT.ai Organoid with Black Hole
 overlay z-steps

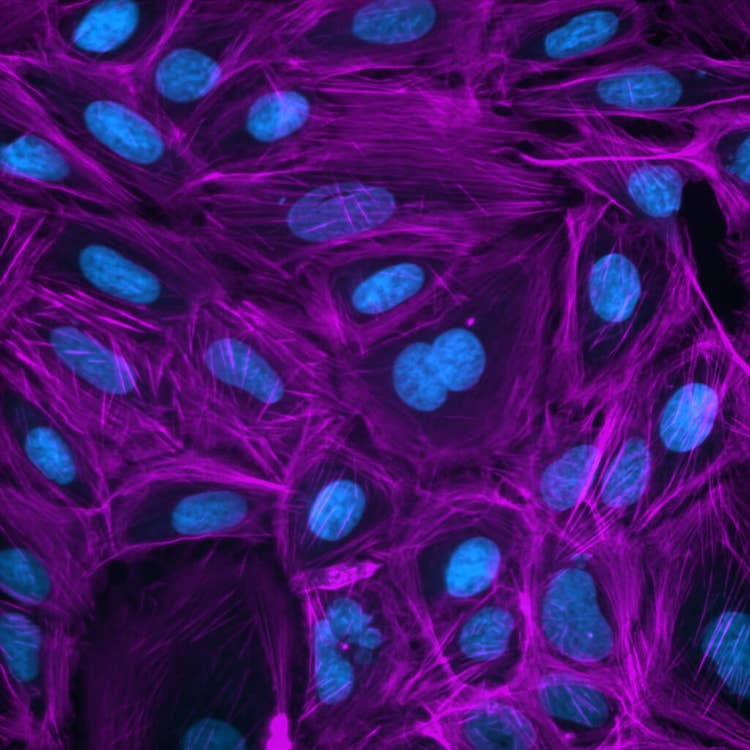

 Cell Painting

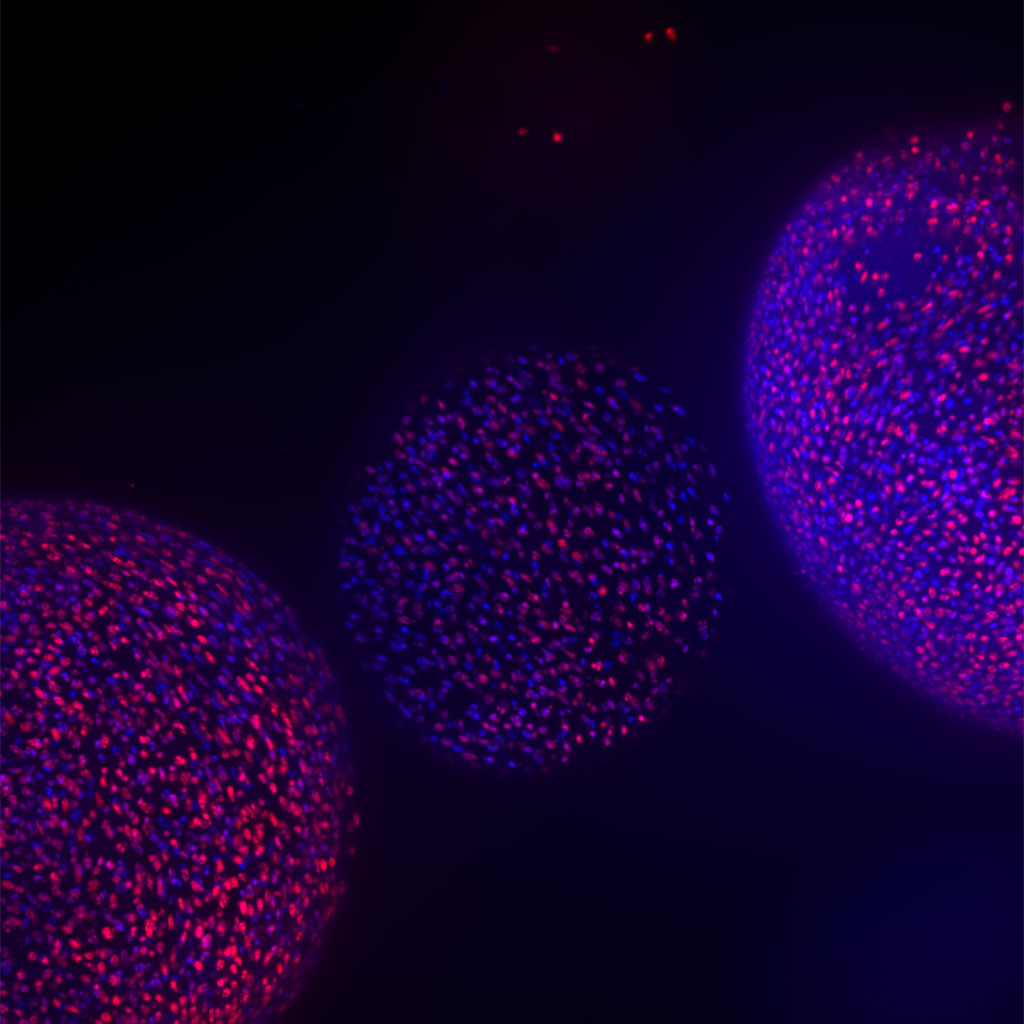

Confocal HT.ai Organoid Encoded
