Cellular Imaging and Analysis for 3D Cell Culture Applications and Assays
Development of more complex, biologically relevant, and predictive cell-based assays for compound screening is a primary challenge in drug discovery. The integration of three-dimensional (3D) assay models is becoming more widespread to drive translational biology. Higher complexity cell models have gained popularity because they better mimic in vivo environments and responses to drug treatment. Specifically, 3D cell cultures offer the advantage of closely recapitulating aspects of human tissues including the architecture, cell organization, cell-cell and cell-matrix interactions, and more physiologically-relevant diffusion characteristics. Utilization of 3D cellular assays adds value to research and screening campaigns, spanning the translational gap between 2D cell cultures and whole-animal models. By reproducing important parameters of the in vivo environment, 3D models can provide unique insight into the behavior of stem cells and developing tissues in vitro.
3D cell imaging and analysis workflow
While the development of quantitative assays using 3D cell cultures has become an attractive investigative tool to understand complex biology, challenging 3D cell image acquisition and analysis workflows have hindered wider adoption by the screening community. High-content, high-throughput tools for microscopy offer innovative and automated techniques for evaluating this complex biology. After the 3D cell culture is grown or transferred to an imaging microplate, cells can be treated with compounds and stained with the marker of choice. For acquisition, the ImageXpress® automated imaging systems and our cellular imaging and analysis software provide the capability to screen and analyze these models within a single, integrated interface to dramatically reduce time to discovery.
Steps used for a typical 3D cell culture assay:
3D cell culture imaging and analysis techniques
Our imaging technology continues to evolve for easier implementation of more physiologically-relevant models. Learn more about how our technology can help scale-up 3D cell culture from small-scale assays to high-throughput screening.
Acquire images for 3D assays
In recent years, there have been significant advances in automated microscopy and imaging for delivering more predictive, physiologically-relevant measurements for drug discovery and environmental toxicity applications. Implementation of more complex assays and 3D models requires high resolution to capture publication-quality images and data.
Confocal imaging provides a high signal-to-noise ratio by reducing out-of-focus light for crisper images to yield more cellular detail even within a thick sample. Watch the video to learn about high-throughput techniques on how to acquire images in 3D using the ImageXpress Micro Confocal system.
Analyze images for 3D applications
There are different types of image sets that may be generated even though your sample is 3D. A single plane may be sufficient or multiple planes may be acquired. When multiple planes are acquired, it’s useful to be able to analyze them individually or to analyze them after combining them into a single 2D projection. Ultimately, analysis of the entire 3D image may be the goal of the experiment. Watch the video to learn more about techniques for analyzing images from multiple z-planes as a 3D volume using MetaXpress software.
Advantages of 3D Cell Models
Three-dimensional (3D) cell models are more physiologically relevant than two-dimensional cell cultures, and they more closely represent the tissue microenvironments, cell-to-cell interactions, and biological processes that occur in vivo. Now you can generate more predictive data using high-content imaging (HCI) systems like the ImageXpress system. By integrating both high-content image acquisition and analysis software like MetaXpress® software with the 3D Analysis Module, the ImageXpress system can be used for in-depth analysis, visualization, and assessment of 3D structures. This single interface will enable you to meet 3D acquisition and analysis challenges without compromise to throughput or data quality, giving you confidence in your discoveries.
Learn more about 3D cell model application and assays:
Latest Resources
3D cell imaging and analysis workflow
The workflow of a 3D cell culture protocol is dependent on the type of cell model being cultured. The 3D cell imaging and analysis workflow depicted here is a generalized example of 3D spheroids in a 96- or 384-well flat or round-bottom microplate. Each step breaks down the process from cell culture to image analysis and highlights the instrumentation and tools needed to conduct the cell culture protocol including an automated high-content imaging system and cellular imaging and analysis software.
3D cell imaging and analysis workflow

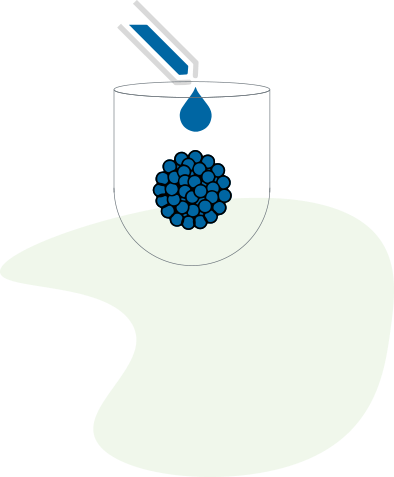

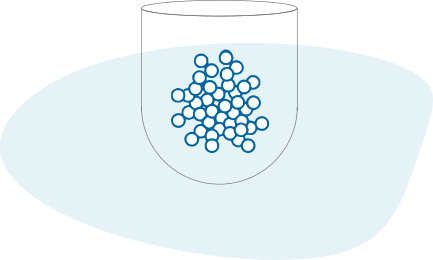

CULTURE SPHEROIDS
3D cell can be cultured directly in a ULA, round bottom plate to develop the typical spherical shape of a spheroid. Cells can also be grown in alternate labware like a petri dish, flask, or other microplate before transferring to an imaging microplate.

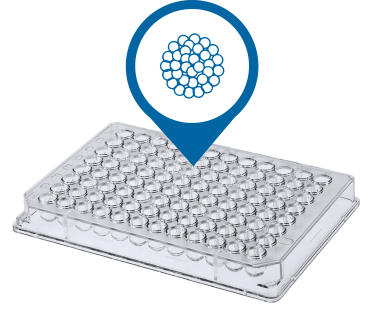

96- or 384- Well Plates
Most 3D cell cultures for high-content, high-throughput screening are run using 96- or 384-well microplates. ULA, U-shaped/round bottom microplates enable the spherical shape to form spheroids or spheroids can also be cultured in a flat-bottom microplate using hydrogels to simulate extracellular matrices (ECM). Optimized spheroid cell culture protocols for the ImageXpress® Micro Confocal High-Content Imaging System can use ULA, U-bottom 96- and 384-well plates with a one-step staining procedure that reduces assay time and minimizes variability.

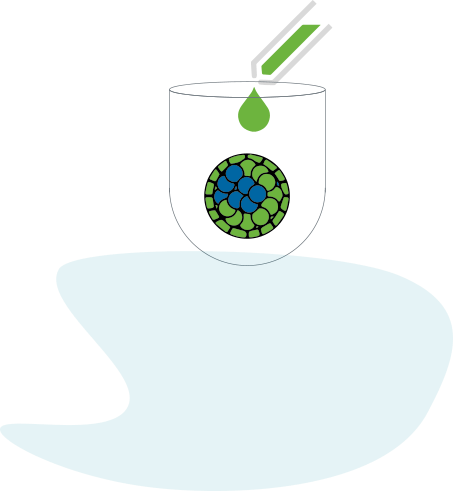

TREAT WITH COMPOUNDS
After spheroid formation, compounds are added into the wells, and then incubated for one to several days, depending on the mechanism being studied. Generally, shorter durations are used to study apoptosis and longer durations for multi-parameter cytotoxicity studies. For drug treatments requiring a longer duration, compounds are refreshed periodically during incubation. The concentration of compounds and the incubation period is dependent on the desired protocol.
STAIN FOR MARKERS
After compound treatment is completed, stains are added directly to the media. Stains that require no washing can be used to avoid disturbing spheroids, but spheroids can be carefully washed even using automation, if necessary.
Assay Kits
Easy-to-use, robust assay kits for life science research, drug discovery and development, and bioassays. Our assay kits are optimized for use on our instruments. Screen more compounds earlier in drug discovery and enable characterization of a full concentration-response profile of test compounds for cell viability, cell proliferation, axiogensis, and more.
https://vids.moleculardevices.com/watch/b3RtIKRdaR7Nc6VowrGtNg
High-content Imaging System
The ImageXpress Micro Confocal system is a unique confocal imaging solution capable of imaging more than a million wells a week. MetaXpress software enables acquisition of 3D z-stacks. Z-plane images can be saved individually or collapsed into a single 2D projection image using a mathematical algorithm.
ACQUIRE 3D CELL IMAGE
Images within the body of the spheroid can be captured individually or as a z-stack (multiple images taken at differing depths) using specialized imaging equipment.
Solutions for High-Throughput 3D Acquisition using High-Content Imaging (PPT)

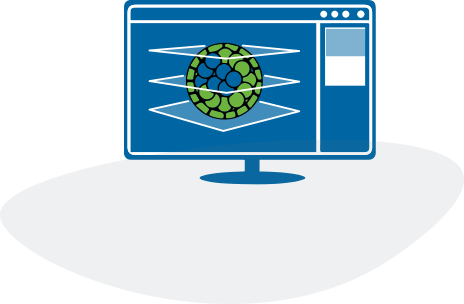

ANALYZE 3D CELL IMAGE
Use cellular imaging analysis software to run quantitative analysis of the cell images to assess and monitor how cells express against different markers and to quantify biological readouts.
https://vids.moleculardevices.com/watch/ABJi1T62w9u2H6GTC59Uxx
High-content Imaging Software
MetaXpress High-Content Image Acquisition and Analysis Software is a multi-level analysis tool for a wide range of 2D and 3D applications optimized for the ImageXpress Micro Confocal system. The integrated acquisition and analysis application modules for 3D cell models simplify high-throughput quantification of 3D structures with volume, intensity, and distance measurements.
Resources for 3D Cells
Related Products And Services
The ImageXpress automated imaging systems are the ultimate combination of speed, sensitivity, and flexibility in a turnkey solution for your 2D or 3D applications and can accommodate different types of slide and plate formats. Our ImageXpress imaging systems allow superior visualization of thick samples by minimizing background fluorescence and increasing sharpness, resulting in accurate image segmentation. Increase the biological relevance of your screening assays with a seamless integration between acquisition and analysis of cells in a 3D space to yield volume, intensity, and distance measurements.
