Automated microbial screening system capable of picking up to 3,000 colonies per hour



The QPix® Microbial Colony Picker leverages best-in-class colony picking technology to alleviate bottlenecks and quickly, accurately, and efficiently screen through massive genetic libraries. The easy-to-use, intuitive software guides users through setting up colony picking runs where precision robotics pick the right colonies every time.. In addition to microbial screening, the system automates several sample preparation and plate handling processes such as transfer of bacterial liquid culture and plating on agar.

Data is automatically recorded into the machine’s database, providing users with a complete audit trail and sample tracking, ensuring that no data is ever lost. Our modular, scalable series of colony pickers allows groups of all sizes to increase the accuracy and throughput of their workflow, while still allowing for future throughput growth.

  • Breadth Icon

    Identify colonies with a desired phenotype

    The QPix colony pickers support a wide variety of microorganisms and multiple selection modalities, including fluorescence intensity, blue/white selection, size and proximity, and zone of inhibition.

  • Select Icon

    Select colonies efficiently

    A suite of organism-specific pin and agar sensor ensure efficient picking. The system delivers a picking efficiency of >98%, allowing you to walkaway with confidence.

  • Sterlity Icon

    Maintain Sterility

    A host of sterility features are available including a UV light for sanitizing the interior of the instrument, as well as pin washing, and halogen drying of pins.

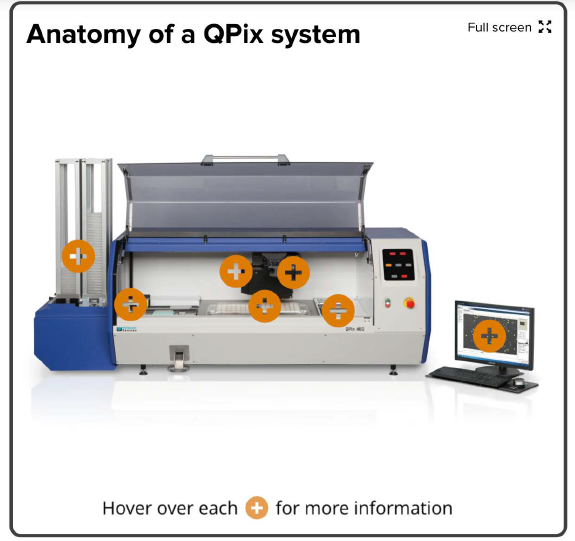

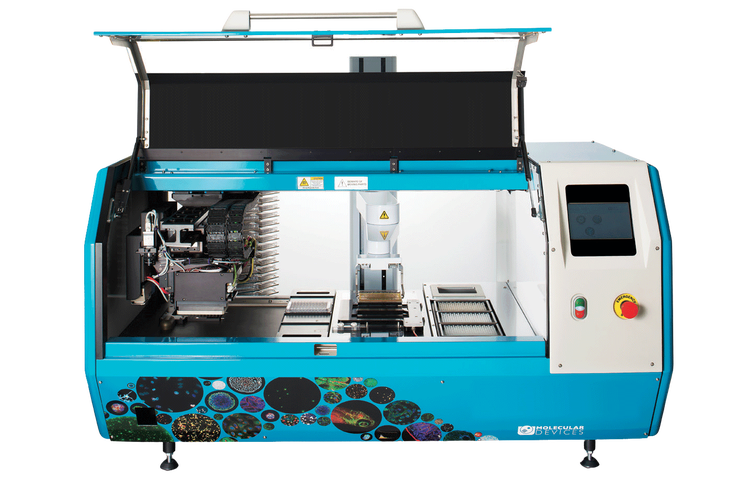

Anatomy of a QPix system

Features

  • Efficient Icon

    Organism-specific pins

    Different shape and picking area pins maximize efficiency for E. coli, phage, and yeast. Plating-specific pins ensure uniform distribution of liquid culture onto agar.

  • Multiple Selects Icon

    Multiple imaging modes

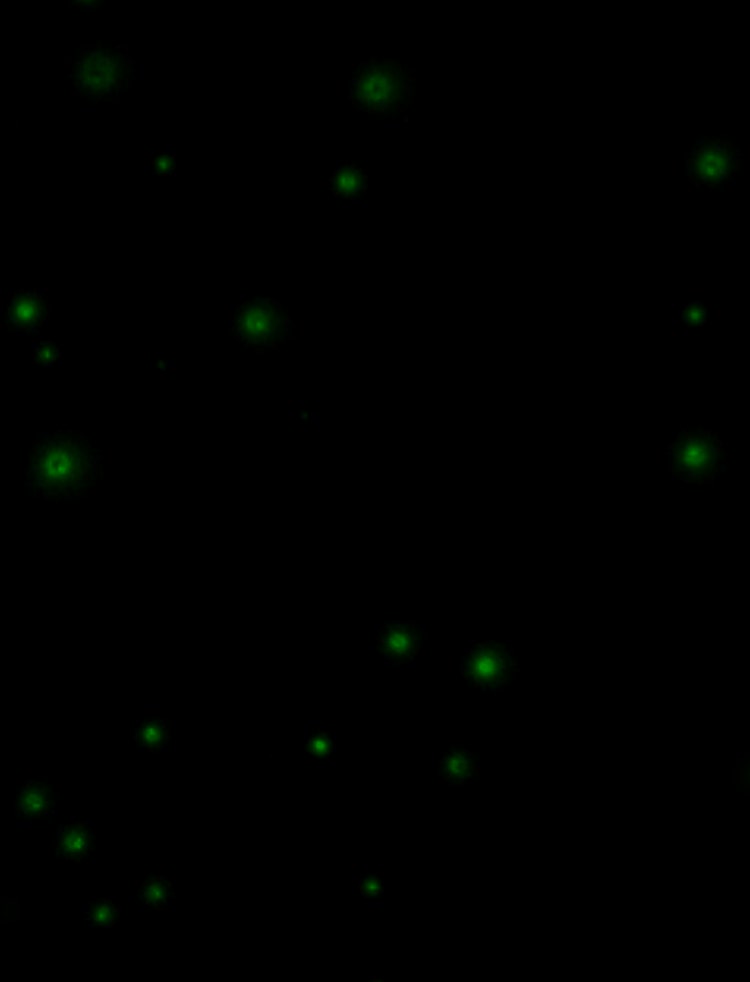

    Colonies can be picked based on pre-specified parameters using white light, fluorescence, and color. The use of filters enables applications such as blue-white colony screening.

  • Save Time Icon

    Plating and Spreading

    Automated plating and streaking of 96 samples can be done in 30 minutes, providing greater walk-away time.

  • Streamline Icon

    Replication, grid and hit picking

    Automated plate handling and tracking streamlines downstream assay and sample management. QPix colony pickers provides flexible plate replication, gridding, and hit-picking capabilities.

  • Efficient Icon

    Agar sensing

    Ultrasonic agar height sensor detects differences in height resulting from variable pouring volume enabling maximum picking efficiency.

  • Automatio Icon

    Scalable automation options*

    The QPix HT model is a robot compatible solution with a modular deck. The Advanced Workflow Engineering Solutions Team can tailor a colony picker with a variety of custom services.

*Price, time to deliver and specifications will vary based on mutually agreed technical requirements. Solution requirements may cause adjustment to standard performance.

Automate your workflow with the QPix colony picker

Colony picking is an essential step in biological research as scientists often isolate microbial clones in order to mass produce DNA or proteins to be used in a variety of applications downstream. Traditionally, colony picking is performed manually using sterile pipette tips or inoculation loops, which are usually slow, labor-intensive, and time-consuming. Not only will automated colony pickers make the entire process quicker, but the results are more consistent and reliable.

IMAGING
PICKING CAPACITY
COLONY SELECTION CRITERIA
PICKING AND REGIONAL PICKING
BARCODE TRACKING
RE-ARRAYING AND REPLICATION
GRIDDING
PLATING AND STREAKING
AGAR TO AGAR
ROBOTICS INTEGRATION
SHAKING INCUBATOR
LIQUID HANDLER
PCR
SEALER/PEELER
ELISA
DESTINATION PLATE CAPACITY
STACKERS
SOURCE PLATE CAPACITY
WALKAWAY TIME

Basic design for automating colony picking with small footprint. Ideal system to replace manual with automated picking and allows for a flexible bed setup and labware use.

From plating to picking – increase throughput with up to 210 destination plates in three stacker lanes. Optional fluidics for plating and streaking allows you to plate and pick samples.

Flexible, modular, and fully automated colony picking and library management system is ready for robotics integration for maximum throughput and walkaway time.

Ideal for small lab spaces with no compromise on efficiency, with advanced imaging and robotic capabilities. The modular platform allows for further integration into an automated work cell for throughput growth or walk-away time.

White light and fluorescence.

White light and fluorescence.

White light and fluorescence.

White light and fluorescence

3000 colonies per hour in white light, 2000 colonies per hour in fluorescent light

3000 colonies per hour in white light, 2000 colonies per hour in fluorescent light

3000 colonies per hour in white light, 2000 colonies per hour in fluorescent light

1500 colonies per hr white light and 1000 colonies per hour in fluorescence mode

Size, proximity, roundness, fluorescence intensity.

Size, proximity, roundness, fluorescence intensity.

Size, proximity, roundness, fluorescence intensity.

Size, proximity, roundness, fluorescence intensity.

Done
Done
Done
Done
Done
Done
Done
Done
Done
Done
Done
Done
Done
Done
Done
Done
Done
Done

Only QPix 460

Done
Done
Done
Done
Done
Done
Done
Done
Done
Done
Done
Done
Done
Done
Done
Done
Done
Done
Done
Done
Done
Done
Done
Done
Done
close
Done
Done
Done
close

Picking: 12 plates
Replicating and re-arraying: Maximum of 20 plate positions

QPix 450: Up to 156 standard SBS plates, 52 standard SBS plates per stacker, up to 3 stacker lanes.

QPix 460: Up to 104 standard SBS plates, 52 standard SBS plates per stacker, up to 2 stacker lanes.

Configurable and expandable with automation. No limit to number of plates.

Picking – 4 plates

Replicating and re-arraying:
Max – 8 plates

Done

2 or 3 Stacker Lanes

Plate Hotels

Done

Without manual intervention:
1 x 15 cm petri dish;
5 x 9 cm petri dishes;
2 x OmniTrays;
1 x 22 cm QTrays

Without manual intervention:
2 x 15 cm petri dish;
10 x 9 cm petri dishes;
4 x OmniTrays;
2 x 22 cm QTrays

Automation mode:
1-well Omnitray,
8-well Omnitray
Manual mode:
Qtrays
Petri Dishes
Omnitrays
SBS plates

Manual Mode:
1 x 15 cm petri dish;
5 x 9 cm petri dishes;
2 x OmniTrays;
1 x 22 cm QTrays

Automation mode:
1-well Omnitray,
8-well Omnitray

25 minutes at a time - only return to swap destination plates after 12 are full

QPix 450: 156 plates x 96 colonies per plate = 14,976 colonies picked in 4.5 hours

QPix 460: 104 plates x 96 colonies per plate = 9,984 colonies picked in 3 hours

Entire duration of run



Latest Resources

52

Applications of QPix 400 Series Microbial Colony Pickers

  • Antibiotic Zone of Inhibition

    Use of QPix Software for Antibiotic Zone

    The effectiveness of an antibiotic-producing bacterial strain on a target bacterial strain can be measured by the size of the clearing zone it produces on a lawn of bacteria. QPix Software allows you to rapidly identify, rank, and pick microbial colonies producing clearing zones. Intelligent image analysis enables measurement of clearing zones within a lawn and ranking based on colony size, halo diameter, and compactness.

    Biofuels

    Detection of Biofuels in QPix Colony Pickers

    One of the most prominent alternative energy resources is biodiesel, an energy-rich portable fuel mainly composed of triacylglycerols. Biodiesel production from lipid producing microbial systems involves screening thousands of clones through a multitude of tests such as bicinchoninic acid (BCA) assays, optical density measurements, and gas chromatography assays. QPix colony pickers automate the task of colony picking, a laborious and error-prone process, effectively shortening timelines to find suitable candidates.

    Read Application Note

  • Blue-White Screening

    QPix 400 Blue-White Screening

    Screening of bacterial transformants that contain recombinant plasmids with cloned gene inserts is an essential step in molecular cloning. A colorimetric reporter method called “blue-white screening” allows convenient identification of recombinant and non-recombinant colonies based on color. QPix colony pickers offer an automated solution especially designed for accurate blue-white colorimetric screening using white light imaging for effective monitoring of transformation efficiency. Other colorimetric approaches such as “red-white screening” can also be implemented on the systems.

    Read Application Note

    DNA Sequencing

    QPix DNA Sequencing

    Sequencing is the reading of the precise order of adenine (A) guanine (G) cytosine (C) and thymine (T) nucleotides within a molecule of DNA. Shotgun sequencing is a method whereby DNA is fragmented into one kilobase pieces, are then sub-cloned into circular plasmids, and transformed into bacteria. Automated colony picking is essential for increased throughput and plasmid isolation for sequencing. QPix colony pickers are renown for reliability and accuracy, and were used by many sequencing centers during the Human Genome Project. Many areas of research, such as vaccine development, continue to utilize traditional sequencing techniques.

    Read Application Note

  • Drug Discovery & Development

    Drug Discovery & Development

    The drug discovery landscape is shifting, with more scientists centering cell line development, disease models, and high-throughput screening methods around physiologically-relevant 3D cell models. The reason for this is clear: Using cellular model systems in research that closely mimic patient disease states or human organs can bring life-saving therapeutics to market – faster.

    Learn more

    Monoclonal Antibodies (mAbs)

    Monoclonal Antibodies (mAbs)

    Monoclonal antibodies (mAbs) originate from one unique parent cell, thus binding only to a single epitope. Monoclonal antibody discovery typically refers to the screening and identification of specific antibodies that target a specific epitope for the diagnosis and treatment of diseases, like the coronavirus for COVID-19.

    Learn More

  • Phage Display

    Qpix Colony Pickers Phage Display Technique

    Phage Display is a technique to enable the study of protein, peptide or DNA interaction with a target protein. This molecular tool enables the discovery of high-affinity binders by using bacteriophages to present a target protein on the exterior of the viral coat, while containing the DNA encoding the target protein inside the viral coat. The resultant displaying phages can be screened for binding against a library of peptides or proteins in a high throughput fashion. QPix colony pickers can be used to automate inoculation, plating, spreading and picking in a Phage Display workflow.

    Learn more

    Protein Evolution

    Microbial Colony Pickers Protein Evolution

    Protein evolution describes the changes over time in protein shape, function, and composition. Directed evolution of proteins has proven to be an effective strategy for altering or ameliorating the activity of macromolecules for industrial, research, and therapeutic applications. With multiple fluorescent filters, the system is compatible with a wide range of fluorescent cloning vectors. This enables QPix colony pickers to reveal unique information about individual colonies when studying protein folding, enzyme evolution, and protein localization. This includes searching for transformation markers and screening for mutations.

  • Synthetic Biology

    Synthetic Biology

    Synthetic biology is a broad term that refers to the manipulation of genetic pathways to harness the power of existing biological systems in novel ways (often to manufacture molecules or proteins). Synthetic biology applies principles that are derived from engineering, specifically design-build-test-learn cycles, to biological systems. By leveraging high-throughput workflows, synthetic biologists can accelerate this process.

    Learn More

Specifications & Options of QPix 400 Series Microbial Colony Pickers
