pCLAMP 11 Software Suite

Sophisticated patch-clamp electrophysiology data acquisition and analysis software
Patch-clamp analysis software with Clampfit Advanced Analysis Module

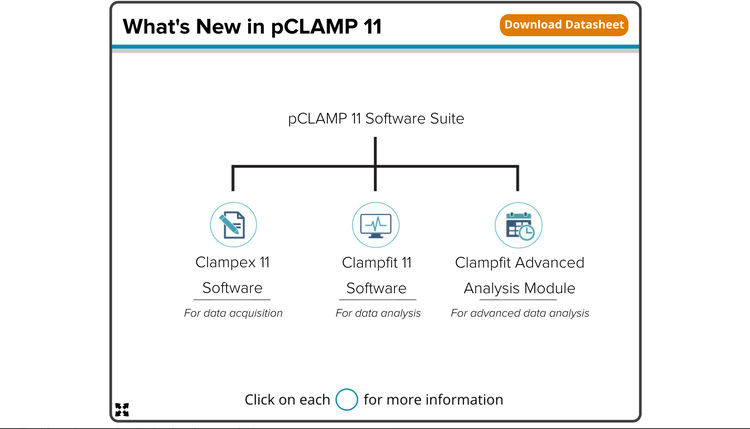

The pCLAMP™ Software Suite is an industry-leading patch-clamp electrophysiology data acquisition and analysis program for the control and recording of voltage-clamp, current-clamp, and patch-clamp experiments. The software suite consists of Clampex 11 Software for data acquisition, AxoScope 11 Software for background recording, Clampfit 11 Software for data analysis, and optional Clampfit Advanced Analysis Module for sophisticated and streamlined analysis.
-
Design advanced protocols easily
The enhanced protocol editor enables up to 50 epochs instead of 10, providing the flexibility to program longer, more sophisticated protocols.
-
Streamline workflows*
Batch analysis macros enable the analysis of data files in batches and eliminates the need to define parameters for every data set.
-
Analyze faster*
Automated event detection analyzes spontaneous and evoked action potentials and post-synaptic data. Identify events based on a variety of factors.
pCLAMP 11
Features
-
Comprehensive analysis tools
The software includes a wealth of analysis tools including 24 cursor pairs for regions of interest search, graph plotting tools such as I-V plot and histogram, and more.
-
Improved visualization
The membrane testwindow displays up to eight channels simultaneously, making it easier to control multiple channels.
-
Enhanced gap-free mode
A simple continuous "chart-recorder" useful for monitoring single channel events, minis, and other spontaneous activities. Protocol-editor-style epochs and program digital or analog outputs can be executed.
-
Population spike analysis*
This tool automatically calculates amplitude, area under the curve, half-width, decay and rise time, decay and rise slope, coastline of spike, and paired pulses.
-
Action potential analysis*
This feature automatically detects and analyzes amplitude, APD90, rise and decay time, rise and decay slope, peak-to-peak frequency and time, and more.
-
Batch analysis*
Macros for batch analysis eliminates the need to define parameters for every data set. Saved macros can be applied to multiple data sets for automatic analysis.
*Clampfit Advanced Analysis Module only
Latest Resources
Specifications & Options of pCLAMP 11 Software Suite
*Supports all previous versions in a model line.
**We only support Professional, Enterprise, and Ultimate editions but not Home edition.
Axon™ pCLAMP®, Axon™ DigiData™ and Windows Operating System Compatibility Table
Consult the table below to determine pCLAMP software compatibility with various AXON digitizers and Windows operating systems.
pCLAMP |
MiniDigi |
DigiData 1200 |
DigiData 132x |
DigiData 1440 |
Digidata 1550 series |
Windows OSa |
8.xb |
No |
Yes |
Yes |
No |
No |
95, 98, ME, NT4.0, 2000, XP |
9.xc |
Yes |
Yes |
Yes |
No |
No |
98, ME, 2000, XP |
10.xd |
Yesh |
No |
Yesg |
Yesf |
Yesf |
2000, XP sp3, Vista, Windows 7 & Windows 10e (32 & 64-bit) |
11.x |
Yesh |
No |
No |
Yes |
Yes |
Windows 7 & Windows 10e (32 & 64-bit) |
Notes:
a.) Only U.S. versions of Windows operating systems are fully supported, and only a computer with authentic Windows is supported, i.e., emulators and virtual machines are not supported. pCLAMP version 10.3 or higher are the only installers that support 64-bit Operating Systems.
b.) Update from 8.0 or 8.1 to 8.2 is free. Only the 32-bit installer of 8.2 runs on Windows XP (see download link above).
c.) Update from 9.0 or 9.1 to 9.2 is free. pCLAMP 9 software is not supported for use under Windows 7 (32- or 64-bit versions).
d.) All updates within 10.x (e.g. from 10.0 to 10.7) are free.
e.) Windows Home Edition is not supported.
f.) Digidata 1440, 1550, 1550A, and 1550B are supported on 10.7.
g.) Use of the Digidata 1320A, 1321A or 1322A on 64-bit Operating Systems is not supported. The Digidata 132x series are only supported up to pCLAMP versions 10.3.
h.) MiniDigi 1B is required for use under 64-bit Operating Systems.
