FLIPR Potassium Assay Kit
The FLIPR® Potassium Assay Kit measures functional activity of ligand- and voltage-gated potassium channels. The homogeneous, no-wash assay protocol provides a large signal window and high Z’ values.
Overview of FLIPR Potassium Assay Kit
The FLIPR Potassium Assay Kit exploits the permeability of thallium ions (Tl+) through both voltage- and ligand-gated potassium (K+) channels. In this assay, a novel, highly-sensitive Tl+ indicator dye is utilized which produces a bright fluorescent signal upon the binding to Tl+ conducted through potassium channels. The intensity of the Tl+ signal is proportional to the number of potassium channels in the open state; therefore it provides a functional indication of the potassium channel activities. In addition, one of our proprietary masking dyes is employed to further reduce background fluorescence for improved signal/noise ratio.
- Functional measurement of potassium channel activity in a cell-based assay
- Homogenous no-wash protocol reduces well-to-well variation and simplifies the workflow
- Expanded signal window compared to non-homogenous assay
- Rapid procedure with less hands‐on time
Latest Resources
Data of FLIPR Potassium Assay Kit
-

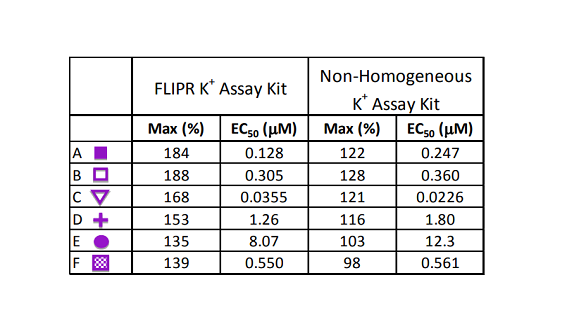

Potassium Kits Comparison
Comparison of FLIPR Potassium Assay Kit results to a competitor kit.
-

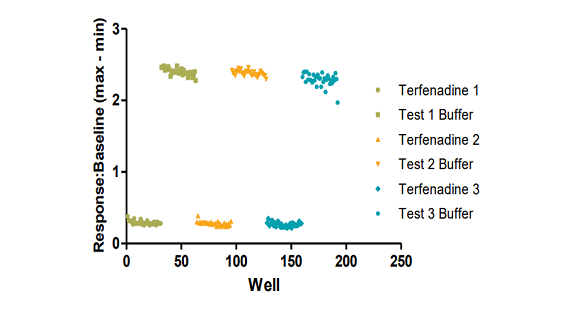

Signal Window Comparsion
Comparison of signal dynamic range between the FLIPR Potassium Assay Kit and a competitor kit. Negative control is 4 μM terfenadine; positive control is buffer. The Z’ factor for the FLIPR Potassium Assay Kit = 0.85 and n = 32 compared to the competitor Z’ factor = 0.64 and n = 30.
-
hERG Channel Inhibition
Concentration-dependent inhibition of hERG channel by reference compounds.
-
Optimization of hERG Channel Stimulant
Cells were incubated with dye and the stimulant buffers were added during detection on the FLIPR Tetra System. The concentration-dependent response of signal was characterized under different conditions. Optimal signal was obtained from the combination of 1 mM Tl+ and 10 mM K+ (final concentration) stimulant buffer diluted in chloride-free buffer.
Technology of FLIPR Potassium Assay Kit
-
Assay Kit Mechanism
The assay exploits the permeability of thallium (Tl+) for potassium (K+) channels. The cells are incubated with an AM ester form of a fluorescent thallium sensitive dye. Intracellular esterases cleave off the AM group trapping the dye within the cells. Cells are then stimulated with either a mixture of K+ and Tl+ or a ligand in the presence of Tl+. The increase in fluorescent signal represents the influx of Tl+ into the cell specifically through the potassium channel and becomes a measure of potassium channel functional activity. Background is reduced by the masking solution.
Ordering Options of FLIPR Potassium Assay Kit
FLIPR Potassium Assay Kit
Explorer Kit - PN: R8222
- (10) Vials of Component A
- (1) Bottle of Component B* assay buffer HBSS + Ca2+, Mg2+ and 20 mM HEPES, pH 7.4
- (10) Vials of Component C
- (1) Bottle of 5X chloride-free assay buffer
- (1) Bottle of potassium sulfate solutin (200 mM)
- (1) Bottle of thallium sulfate solution (50 mM)
Each kit contains enough material for ten (10) 96-well or 384-well microplates. Each vial is sufficient for one (1) microplate experiment.
#R8222
Bulk Kit - PN: R8223
- (10) Vials of Component A
- (10) Vials of Component C
- (1) Bottle of 5X chloride-free assay buffer
- (1) Bottle of potassium sulfate solutin (200 mM)
- (1) Bottle of thallium sulfate solution (50 mM)
Each kit contains enough material for one hundred (100) 96-well or 384-well microplates. Each vial is sufficient for ten (10) microplate experiments.
#R8223
Evaluation Kit - PN: R8330
- (2) Vials of Component A
- (1) Bottle of Component B* assay buffer HBSS + Ca2+, Mg2+ and 20 mM HEPES, pH 7.4
- (2) Vials of Component C
- (1) Bottle of 5X chloride-free assay buffer
- (1) Bottle of potassium sulfate solutin (200 mM)
- (1) Bottle of thallium sulfate solution (50 mM)
Each kit contains enough material for two (2) 96-well or 384-well microplates. Each vial is sufficient for one (1) microplate experiment.
#R8330
