COMPLETE SOLUTION FOR HIGH CONTENT DATA ANALYSIS AND VISUALIZATION
MDCEarth Drill Down Enables Bidirectional Interaction Between Images and Numerical Data
High End Data Mining Tools Designed with Flexibility and Ease of Use in Mind
Fully Integrated with MDC Total Imaging Solution
Open API Management for Easy Read/Write to the Database
The AcuityXpress Platform
AcuityXpress™ is the cellular informatics software for the Total Imaging Solution from Molecular Devices and it has been specifically designed to address the needs of high content data analysis at an enterprise-level. AcuityXpress shares the MDCStore™ database with MetaXpress™ for seamless integration of image acquisition, image analysis and informatics. As a result, cell-by-cell multi-parametric results are automatically linked with the images and analysis results.
MDCEarth™ for Full Interaction with Image Data

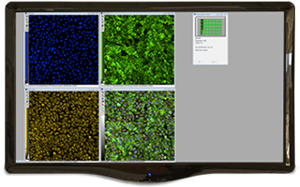

The MDCEarth feature of AcuityXpress brings visualization of high content data to the next level. This unique and groundbreaking tool allows for direct interaction of image and numerical data at all levels and in both directions from the detailed view of the individual high resolution images to the global, high-level view of all of the image data in a large screen.
Press the Play button to start the MDCEarth animation.
High-End Curve Fitting
Curve-fitting for IC50 and EC50- calculation can be generated with predefined functions, as well as custom functions with up to 6 independent variables and 24 fitted parameters. A number of search, minimization and weighting methods, and parameter seeding and model comparison are available for the very best fits.
Easy Multi-Parametric Analysis
Because high content data is multiparametric in nature, a number of advanced analysis tools for data mining are easily accessible in AcuityXpress. From K-Means, K-Medians, Hierarchical Clustering to Self-Organizing Maps and more, cells can be clustered by phenotypes and compounds by responses. MDCEarth allows drill down to the original images to validate the results. With MDCEarth, it is also possible to select the image data to analyze specific populations of cells or compounds.
Multiple Visualizations and Statistics

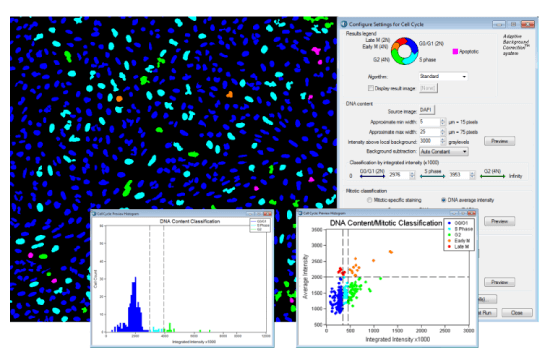

Interactive scatter plots of any measurement against any other, within or between plates can be easily created. The array of statistical data includes Z', p-values, correlation coefficients and principal component scores.
Flexible Database Management and Open API
Interaction with the database is easy and complete. A database API is available to write and read to the database. Creation of complex database queries for data QC is managed through a complete database query wizard. Visualized data can be exported for publication quality images. Annotation can be made plate by plate with the graphical Plate Layout Manager or from text files or through the API.
A Complete List of AcuityXpress Features
Data Management
Annotate plates of images
Create, save and load plate annotation templates
Linear normalization of measurement sets
Create datasets from measured data and annotations in the database using advanced graphical query tool
Plate layout manager for annotating plates with compound names and concentrations
Import and display data annotations (including compound annotations) using multiple annotation parameters
Import and export quicklists
Import and export measurement sets
Export datasets
Restricted data access (group policy)
Advanced data organization . organize and review your data in a tree using filters on data properties
Organize data annotation into warehouse with restricted access
Database Recycle Bin to restore deleted data
Attach (import) any file type to a measurement set or a dataset in the database
True copy and paste of data to the datasets
Visualizations
MDC Earth for comprehensive drill down and drill back of data at all distance scales and levels of abstraction
Plate heat maps
Line graphs
Scatter plots of any data column, or any analysis data type, IC50 values
Color tables
2-D interactive plots
Dendrograms
Animated interactive 3-D scatter plots
Export any visualization as PDF, BMP or WMF
Export animated 3D scatter plots as AVI
Multivariate Analysis
Curve fitting with many different fit functions, weighting methods, minimization methods
Curve fitting of user-defined functions
Hierarchical clustering with many different similarity metrics
Self-organizing maps (SOMs) with many different similarity metrics
K-Means and K-Medians with many different similarity metrics
Gap Statistic to estimate optimal number of K-Means, K-Medians or Self-Organizing Maps clusters
Principal components analysis (PCA)
Order dendrograms with SOMs, PCA
Gene Shaving
Find similar profile with a selection of similarity metrics
Find similar profile to user-defined profile
Union and intersection of lists
Statistics calculated for replicates, including mean, median, coefficient of variation, standard deviation, maximum, minimum
Column arithmetic on any data column
Multiple column transformations on datasets (row and column centering and scaling)
Lasso selection on images and visualizations
Scripting engine for customizable analysis through VBScript, JavaScript or ActiveX objects
Analysis queuing
Fully integrated with MetaXpress
Web links for unlimited access to web-based databases, including pathways
Integrated Tools to Work with MDCStore Data Warehouse
Tools for creating and managing users and groups (read only, read-write or lab head permissions)
Advanced database management tools, such as a database optimizer to re-build database table indices
Database backup and restore utility (SQL Server only)
Database Recycle Bin to permanently delete or restore deleted data
Compact database tool to minimize database size on disk (SQL Server Only)
MDCStore Data Warehouse Solution
Can be installed and run on Microsoft SQL Server 2000, SQL Server 2005, and Oracle 9i and 10
ODBC-compliant
Full client-server model for effortless local, LAN or remote TCP/IP access
Storing image data (files, blobs) in database or on network using ACE (MDC File Server) or UNC path (shared folders)
Specially designed schema to increase data access for large size (TBs) databases
Secured access to data using MDCStore security policy based on Microsoft SQL Server or Oracle security policies
Configurable User\Groups restricted access to data (Read-Only, Read-Write, Full Access)
An open database API for integration with existing corporate databases
