Research team reduces scan times by 88% using MetaMorph Microscopy Automation and Image Analysis Software

Laboratory of Mucosal Barrier Pathobiology, Department of Pathology, Brigham and Women’s Hospital, Harvard Medical School

Jerrold R. Turner, M.D., Ph.D. , Professor of Pathology and Medicine

Shabnam Abtahi, MD Postdoctoral Research Fellow

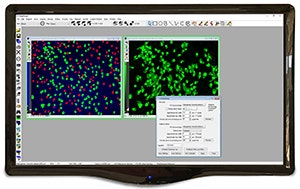

MetaMorph® Microscopy Automation and Image Analysis Software

The Challenge

The main fields of research for the team at the Laboratory of Mucosal Barrier Pathobiology, Department of Pathology, Brigham and Women’s Hospital, Harvard Medical School are epithelial and mucosal biology, gastrointestinal pathophysiology, and mechanisms of tight junction regulation at a molecular level. As a part of this work, Dr. Turner, Professor of Pathology and Medicine, and his colleagues have been using tissue microarrays to allow immunostaining of 40 or 50 specimens on one slide. Unfortunately, they did not have a commercial, turnkey slide-scanning system in their lab, and none of the core facilities they used had fluorescent slide-scanning systems. Alternative solutions required scanning the entire slide, including many areas that had no tissue, and took over 24 hours per slide. The research team sought to develop an easily deployable, automated slide-scanning system that allowed selection of an infinite number of individual regions of interest (ROIs) and managed focusing more effectively. In addition, they needed a system that would be user friendly, allow easy adjustment of variables, such as fluorescent channels and exposure times, and provide assistance for ROI selection and image review.

“[Using MetaMorph] compares favorably with microscope-based commercial systems. Because the system is run by MetaMorph, it allows complete flexibility in modifying any aspect of the system, including imaging modality, objectives used, illumination sources, filters, and cameras.”

Dr. Turner’s team reduces scan times by 88% using MetaMorph Microscopy Automation

The solution

With the help of Molecular Devices, Dr. Turner’s team developed a set of custom journals incorporating the ScanSlide module that work together and are accessed via a unified taskbar that guides the user. This protocol allows:

  • automated scanning of multiple regions of interest
  • assisted ROI selection
  • customizable, reliable software-based focusing
  • simple, semi-automated and rapid review of preview images
  • automated stitching of high-quality images

As a result, Dr. Turner’s team can now complete a 20X objective scan of a slide with forty 3 mm tissue cores stained in five channels in less than 4 hours. Dr. Turner explains, “This compares favorably with microscope-based commercial systems. Because the system is run by MetaMorph, it allows complete flexibility in modifying any aspect of the system, including imaging modality, objectives used, illumination sources, filters, and cameras. For example, we recently added a switchable light source (Lumencore Aura III), motorized emission filter wheel (Ludl), and multichannel dichroic (Semrock) to eliminate the time lost while our microscope changed filter cubes (~1 second per change). This cut another hour off our imaging time.”

The Results

  • This system has allowed researchers to scan numerous tissue microarrays from experimental mice (Graham et al., 2019; Kuo et al., 2019; Nalle et al., 2019; Raju et al., 2020) and human biopsies (Turner, 2020)
  • Over 5,000 scanned images have been compiled into the publicly accessible Atlas of Intestinal Transport (https://jrturnerlab.com/database-viewer/atlas-of-intestinal-transport/)
  • The journals and Current Protocols publication (Abtahi et al, 2021) and an instructional video can be viewed and downloaded at https://jrturnerlab.com/publication/a-simple-method-for-creating-a-high%e2%80%90content-microscope-for-imaging-multiplexed-tissue-microarrays/
