SpectraTest Validation Plates and Recertification

The SpectraTest® Validation Plates are valuable tools for verifying that absorbance-, fluorescence-, and luminescence-capable microplate readers are operating correctly for GMP and GLP laboratories.

Annual recertification of your validation plates ensure that they meet specifications and give you confidence in the performance of your instrument.

Measure Icon

Measure absorbance, fluorescence, and luminescence with confidence

Use photometric accuracy tests to verify how close an absorbance measurement is to the true value, which is traceable to the National Institute of Standards and Technology (NIST) and NMI (National Metrology Institutes).

Determine the accuracy and repeatability of the wavelength selection with the monochromator, which includes separate tests for excitation and emission.

Qualify the kinetic noise that measures the stability of the optical system at low and high signals, including separate tests for spikes and drift at low and high levels.

Accuracy Icon

Ensure data accuracy of your reader

We have the necessary knowledge and equipment to recertify SpectraTest Validation Plates

SpectraTest ABS2 Validation Plate

Features

SpectraTest FL1 Fluorescence Validation Plate

SpectraTest FL1 Fluorescence Validation Plate

The SpectraTest FL1 plate enables PMT matching to ensure linearity of signal over a greater dynamic range, and RFU (Relative Fluorescence Unit) scaling for optional adjustment of the RFU output.

Analysis Icon

Data Analysis

Preconfigured protocols in SoftMax® Pro GxP Software automatically generate and analyze data. In addition, compliance tools for FDA 21 CFR Part 11 and EudraLex Annex 11 allow for controlled access to test results with audit trails.

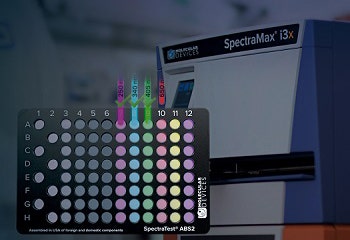

SpectraTest ABS2 Validation Plate

SpectraTest ABS2 Absorbance Validation Plate

This next generation SpectraTest ABS2 plate measures the sensitivity of the optical system ensuring that it is uncompromised by stray light. The plate includes automated certificate value entry and is compatible with our StakMax® Microplate Handling System.

Recertification service

Recertification service

  • Molecular Devices is ISO 17025 accredited† by American Association of Laboratory Accreditation (A2LA), which requires rigorous outside auditing on a regular basis so that you can be assured of the accuracy of your certificate with respect to NIST and NMI traceable standards
  • Gold Standard and Reference Standard Molecular Devices microplate readers are used for recertification so that your certificate values are traceable
  • If validation plate repair is needed, only factory-approved parts that meet our internal specifications for these plates are used
  • Rapid turnaround time of five business days or less; expedited service is available as needed

View our ISO 17025 certificate of accreditation.

SpectraTest LM1 Luminescence Validation Plate

SpectraTest LM1 Luminescence Validation Plate

The SpectraTest LM1 plate enables tests for background noise and spikes, crosstalk to measure light from adjacent wells, and checks for left-to-right bias from the left to the right edge of the plate.

Recertification Service

Nist and Nmis Traceability

Annual recertification of your validation plates ensure that they meet specifications and give you confidence in the performance of your instrument. ABS2, FL1, and LM1 Validation Plates sent to Molecular Devices for recertification at our ISO 17025 accredited lab are disassembled, cleaned, calibrated, an then returned with a new certificate of calibration.

  • Ensure data accuracy of your reader
  • Monitor reader performance on demand to ensure data quality is not compromised between PM/OQ maintenance services
  • Minimize downtime by quickly being able to distinguish between reader and assay issues
  • Maintain conformance to your validation protocols

Only Molecular Devices has the necessary knowledge and equipment to recertify SpectraTest Validation Plates.

Request recertification

Latest Resources

Customer Breakthrough

Université Catholique de Louvain uses our SpectraMax absorbance and multi-mode readers to help fight biofilms

SUCCESS STORY

Université Catholique de Louvain uses our SpectraMax absorbance and multi-mode readers to help fight biofilms

Continue Reading

How can we help advance your next big discovery?

Our highly-qualified teams are on the frontlines with our customers, conducting remote or on-site product demonstrations, webinars, and more to help you solve your tough research challenges. How can we help you today?

I’d like to…

Speak to a specialist

Request a demo

Resources of SpectraTest Validation Plates and Recertification

SpectraTest Validation Plates

Validation packages
Compatible instruments
Part Number
SpectraTest ABS2 Absorbance Validation Plate

SpectraMax iD3, iD5, i3x, i3, M2, M2e, M3, M4, M5, M5e, Plus 384, ABS, ABS Plus, FlexStation 3

Requires SoftMax Pro Software version 6.5.1 or higher

0200-6191
SpectraTest FL1 Fluorescence Validation Plate
Gemini EM, Gemini XPS, SpectraMax iD3, iD5, i3x, i3, M2, M2e, M3, M4, M5, M5e, FlexStation 3
0200-5060
SpectraTest LM1 Luminescence Validation Plate
SpectraMax iD3, iD5, i3x, i3, M3, M4, M5, M5e, SpectraMax L, FlexStation 3
0200-6186
Cuvette Absorbance Validation Set
SpectraMax Plus 384, ABS Plus, M2, M2e, M3, M4, M5, M5e
0200-2420
Multi-Mode Validation Plate
FilterMax F3, FilterMax F5, SpectraMax Paradigm, iD5*, i3*, i3x.* Requires SoftMax Pro Software version 7.0 or higher
0200-7200
Gray replacement validation plate case
SpectraTest ABS2, FL1, LM1
5074718
SpectraTest recertification
Part Number
SpectraTest ABS2 Plate recertification
S9200-0186
SpectraTest FL1 Plate recertification
S9200-0078
SpectraTest LM1 Plate recertification
S9200-0124
Multi-Mode Validation Plate recertification
S9200-7201
Cuvette Absorbance Validation Set recertification

Please call

technical support

*Specific read modes or cartridges.
