ImageXpress Micro XL Widefield High Content Screening System

Faster and simpler than you can imagine

The ImageXpress® Micro XL System is a widefield high content microscope capable of providing automated cellular imaging in fluorescent, transmitted light, and phase-contrast modes for fixed- or live-cell assays.

Speed and flexibility are assured with 3X field-of-view, industry-leading stage and autofocus control, the broadest range of research-grade objective lenses (1x-100X) available, multiple filter options, and a gallery of MetaXpress Software solutions to optimize and speed up image analysis. A modular system design enables instrument enhancements for assays ranging from simple label-free imaging to long-term monitoring of cellular responses, compound addition and post-wash recovery. Individual cells can be tracked during multi-day time-lapse experiments.

3X larger field-of-view than industry standard, enabling fewer images per well and shorter imaging time. Field-of-view can be adjusted for optimal focus on the desired sample area
Wide selection of objectives ranging from 1x to 100x, 0.05 to 0.95 NA for air and 1.4 NA for oil

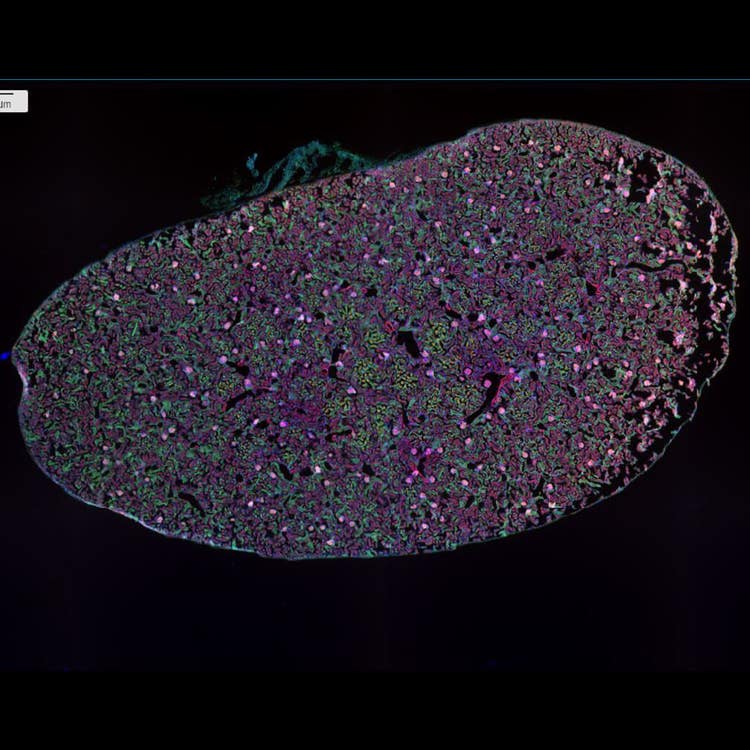

Fully automated 100 nm resolution voice coil driven stages provide positioning accuracy for capturing high-resolution tiled or stitched images, minimizing X-Y stage jitter and ensuring repeatability of extended live-cell experiments

cell imaging, high content screening, apoptosis Watch Video

Hela Cells Plated on 96-well plates and treated with 100 um Etoposide. Each well of plate was visited before returning to first well. Watch the 30 hour movie to see an increase in the number of dead and apoptosing cells. Blue = Hoechst for all Nuclei; Red = Propidium Iodide for Dead Cells; Green = Nucview488 a fluorescence substrate for Caspase 3 and an apoptosis sensor. Overlayed on a phase contrast image.

Industry-leading autofocus option with a dedicated 690 nm focus laser and ultra-fast sensors that will not bleach your sample, decreasing read times up to 5-fold
Highthroughput screening captures > 10 million cells/hour in a low-resolution, whole-well, 3 color cell scoring application, or > 1 million cells/hour in a high resolution two-color assay
Automated 5 position filter cube changer facilitates multiplex assays. Combined with the automated objective changer, single experiments with up to five filter sets and four objectives can be performed with out user intervention

cellomics, high content analysis, cellular imaging

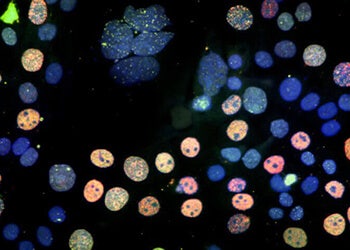

A 5-color assay achieved with multiple filters. Mouse embryo sections Blue = DAPI, Green = FITC, Red = TRITC, Orange = Cy5

Modular design to allow transmitted light, phase contrast, environmental control, fluidics, light source and external filter wheel selection. Learn more about options and flexibility of the ImageXpress Micro system.
Universal plate holder provides most extensive sample compatibility, from slides to plates (6- to 1536-well), thin to thick plate bottoms, glass to plastic, transwell, low profile, or low volume.
Integrated automation, 24/7 is achieved with 3rd party robotic plate handling system, enabling users to schedule multiple runs.

See our list of application notes and poster presentations.

RNA Interference

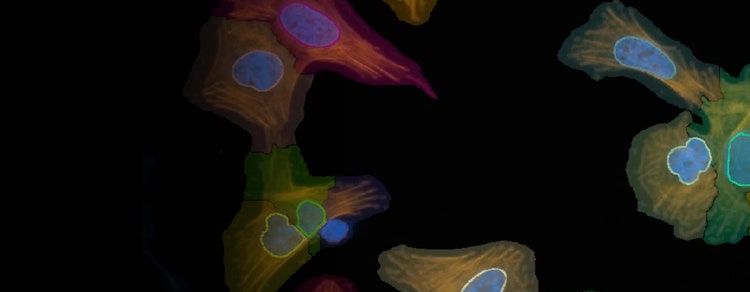

Observing the gene silencing effects of RNAi on biological morphology, development, and behavior is an invaluable tool for pinpointing mechanisms of action in the research or treatment of cancer, neurological disorders, viral infection, hemophilia, and premature aging. The ImageXpress Micro Widefield Imaging System enables users to interrogate large-scale RNAi libraries, measuring critical events including apoptosis, cell cycle, micronuclei, neurite outgrowth, angiogenesis, intracellular translocation, endocytosis, cell signaling, and multi-wavelength cell scoring. For each assay, biological phenotypes can be automatically identified, segmented, and analyzed using a validated software module to generate accurate results for rapid RNAi screening.

RNAi, cell cycle, micronuclei, neurite outgrowth, angiogenesis

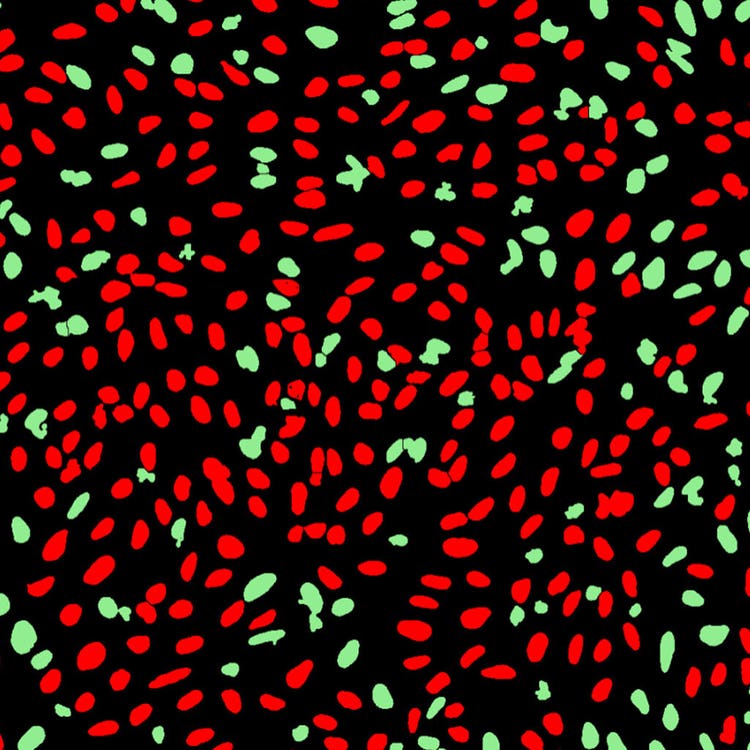

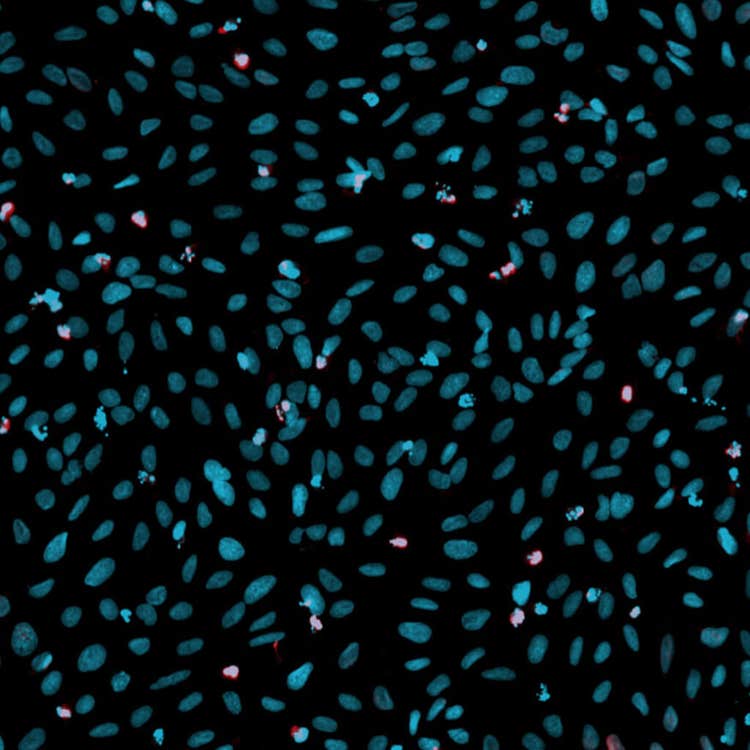

ImageXpress Micro System images of control cells showing DNA damage detected by H2AX phosphorylation. The positive control (bottom) clearly shows a higher percentage of cells with DNA damage (green) compared to total cells (red) in the well.

Click on these links to learn more about the following application modules: Cell Health, Cell Cycle, Micronuclei, Neurite Outgrowth, Angiogenesis, Translocation, Multi-wavelength Cell Scoring, and Granularity.

Stem cells

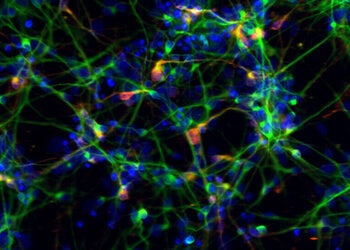

Whether working with embryonic or induced pluripotent stem cells, the ImageXpress Micro System helps you decipher the complex molecular and genetic signaling events that underlie cell division and differentiation. With its widefield focusing capabilities, brightfield imaging option, and environmentally controlled chamber, stem cell growth and differentiation can be measured in cell layers or colonies for extended durations of time. By combining our unique stitching algorithm with precise plate stage movements, accurate measurement of neuronal processes, colony size, or number across multiple fields of view can be recorded.

Click on these links to learn more about the following application modules: Neurite Outgrowth, Translocation, and Multi-wavelength Cell Scoring.


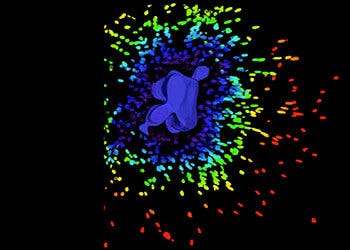

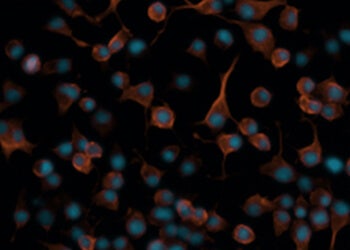

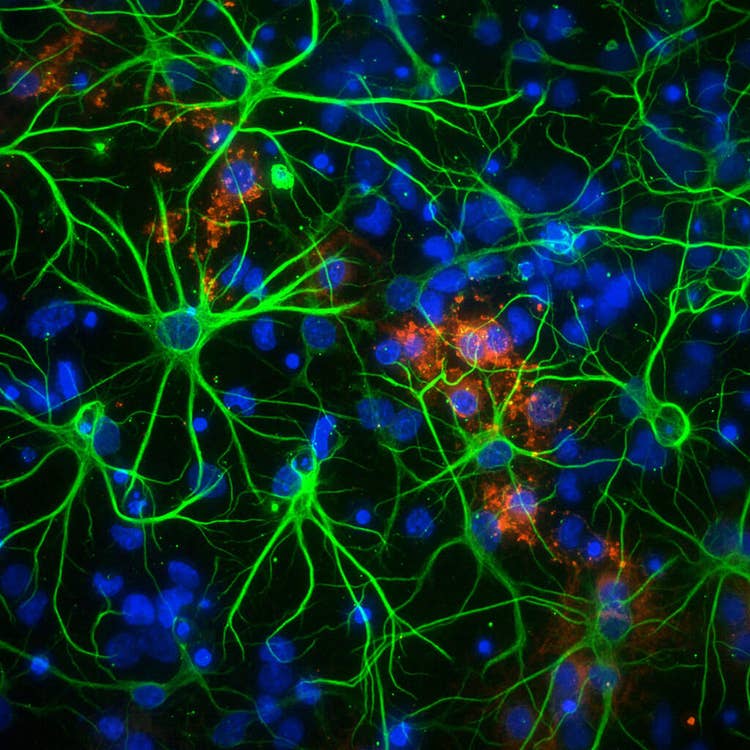

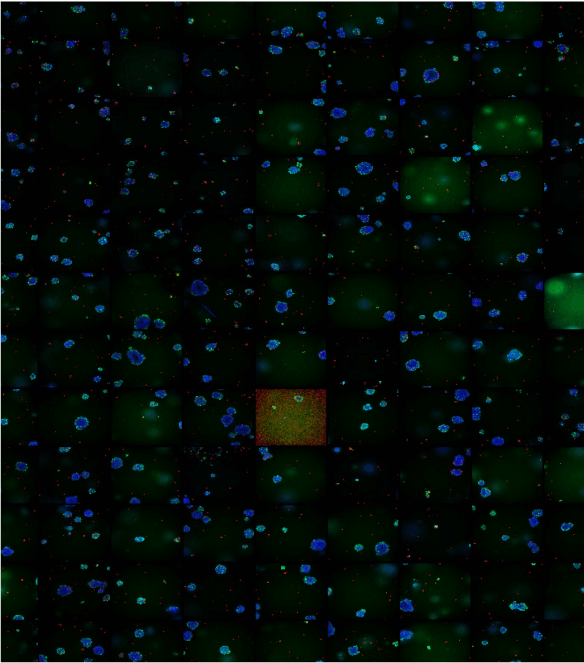

Image montage showing structure of stem cell colonies.	Differentiated neurons imaged in a 96 well plate at 10X magnification with three different fluorescent markers.

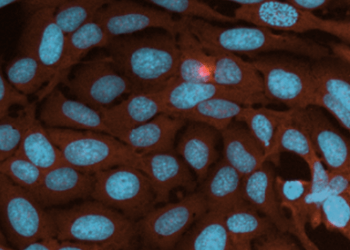

Live cell and small animal analysis

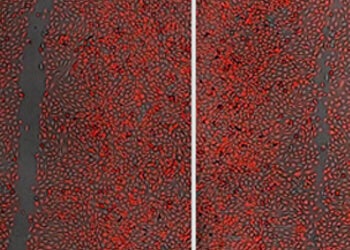

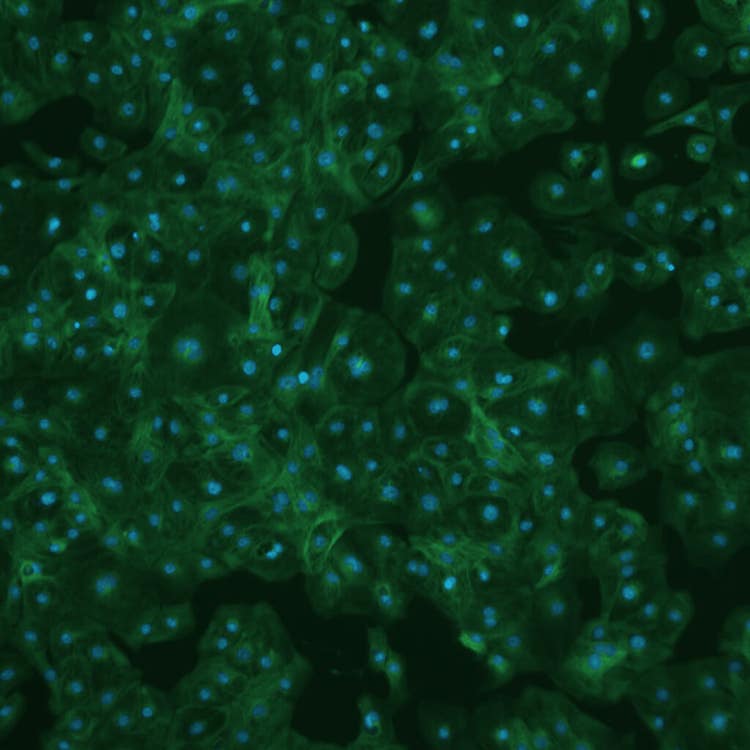

Monitor living cells for the progression of growth, death, differentiation, viral or bacterial invasion, cell migration due to wound healing, cancer metastasis, chemotaxis, drug toxicity, or translocation. Take advantage of the environmental control chamber, brightfield microscope, and on-board fluid addition capabilities of the ImageXpress Micro System to observe rapid kinetic cellular responses or time-courses that span days using fluorescent or unlabeled cells.

Click on these links to learn more about the following application modules: Cell Proliferation, Cell Health, Translocation, and Granularity and Transfluor.

Watch Video

HeLa cells plated on 96-well plates and treated with 100 µm Etoposide. Each well of plate was visited before returning to first well. Watch the 30-hour movie to see an increase in the number of dead and apoptosing cells. Blue = Hoechst for all nuclei; Red = propidium iodide for dead cells; Green = Nucview488 a fluorescence substrate for Caspase 3 and an apoptosis sensor. Overlayed on a phase contrast image.

For more information on small organism imaging, see the poster: Novel Imaging and Analysis of Zebrafish for High-Throughput Screening.

Additional applications

Images acquired with the flexible ImageXpress Micro Widefield Imaging System can be analyzed using any of the numerous software modules that were developed in conjunction with researchers to address their specific applications needs. These modules are tailored to make it easy to perform both common (counting cells) and specialized analyses (counting micronuclei appearance due to addition of genotoxic compounds) required for HCS.

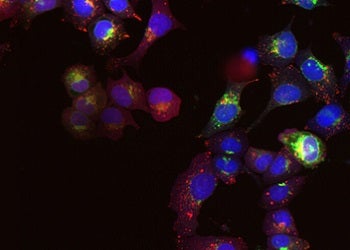

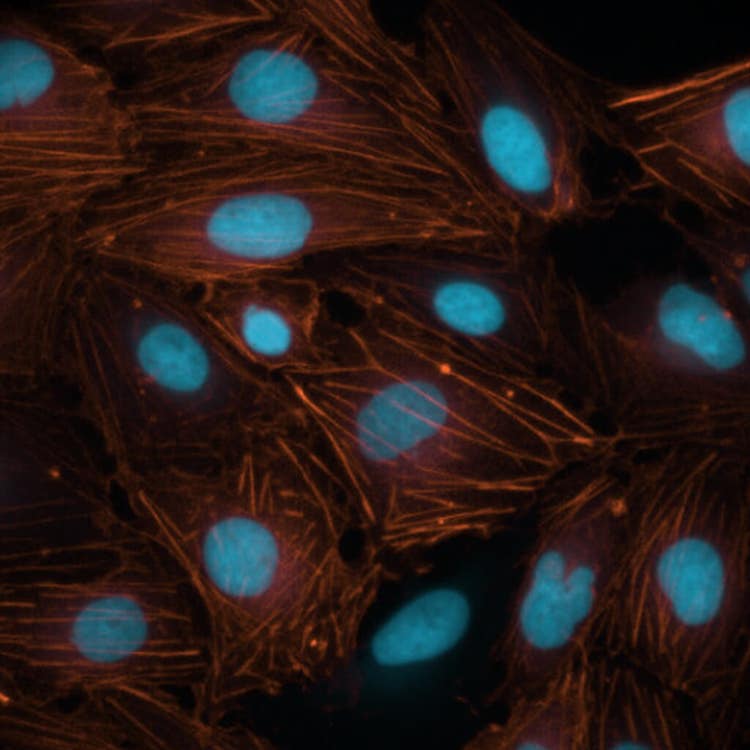

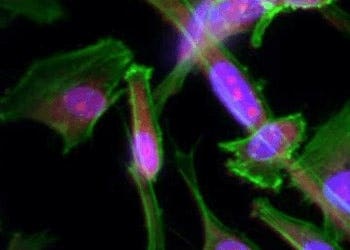

Three color image overlay of cells with GFP expressing vesicles (green), cytoskeleton stained with phalloidin conjugate (red), and nuclei identified by Hoechst (blue).

To learn more about MetaXpress Application Modules that enable some common HCS assays listed click here.

Cameras

1.4 megapixel cooled CCD camera (standard model)
4.66 megapixel scientific CMOS (XL model)

Stages

Linear encoded voice coil driven X,Y, and Z stages have < 100 nm resolution

Objectives

Variety of Nikon 1x- 100x air and oil immersion lenses are supported.

Standard Filter Options

Space and Weight Specifications

What's New?

Run custom modules over time-lapse data with MetaXpress 5.1 Software

High Content Info

Related Collateral

Related Webinars

View Past Recordings

Digital Confocal

Download data sheet to learn more about Digital Confocal option for ImageXpress Micro XL System

Fluorophore	MDC P/N	Semrock P/N	Ex (nm)	Dichroic (nm)	Em (nm)
DAPI, Alexa Fluor 350, AMCA, BFP, Hoechst, LysoSensor Blue, Marina Blue, Pacific Blue, and sgBFP	1-6300-0442	DAPI-5060B	377/50	344-404 (R) 415-570 (T)	447/60
CFP, AmCyan, SYTOX Blue, BOBO-1, BO-PRO-1	1-6300-0447	CFP-2432A	438/24	426-450 (R) 467-600 (T)	483/32
Fura-2 Ca²⁺ indicator, LysoSensor Yellow/Blue	1-6300-0410	Custom (2 cubes)	340/26 387/11	344-404 (R) 415-570 (T)	510/84
GFP, Cy2^TM, CyQuant, DiO, EGFP, sgGFP^TM, wtGFP (non-UV excitation), YOYO-1, YO-PRO-1	1-6300-0450	GFP-3035B	472/30	442-488 (R) 502-730 (T)	520/35
FITC, FAM, Alexa Fluor 488, BODIPY, Calcein, Fluo-4, MitoTracker Green, Oregon Green, Rhodamine 110, rsGFP (red-shifted GFP, S65T)	1-6300-0443	FITC-3540B	482/35	446-500 (R) 513-725 (T)	536/40
YFP, Calcium Green-1, Eosin, Fluo-3, Rhodamine 123	1-6300-0448	YFP-2427A	500/24	488-512 (R) 528-625 (T)	542/27
TRITC, Alexa Fluor 546, 5-TAMRA, Alexa Fluor 532, SpectrumOrange^TM, BODIPY TMR, DiI, POPO-3, PO-PRO-3, Rhodamine	1-6300-0444	TRITC-A	543/22	499-555 (R) 569-730 (T)	593/40
Cy3^TM, DsRed, Alexa Fluor 555, Calcium Orange, LysoTracker Yellow, MitoTracker Orange, Phycoerythrin (PE), Rhodamine Phallicidine, and TAMRA	1-6300-0445	CY3-4040B	531/40	499-555 (R) 569/730 (T)	593/40
Texas Red®;, mCherry, 5-ROX, Alexa Fluor 568 & 594, Calcium Crimson, Cy3.5^TM, HcRed, Propidium Iodide, and MitoTracker Red	1-6300-0449	TXRED-4040B	562/40	530-585 (R) 601-800 (T)	624/40
Cy5^TM, SpectrumFRed^TM, Alexa Fluor 647 & 660, APC (Allophycocyanin), BODIPY 650/665, DiD, SYTO Red, DRAQ5, TOTO-3, and TO-PRO-3	1-6300-0446	CY5-4040A	628/40	594-651 (R) 669-726 (T)	692/40

	W (in.)	D (in.)	H (in.)	Weight (lbs)	W (cm)	D (cm)	H (cm)	Weight (kg)
ImageXpress Micro Base Unit System	18	31.7	19.4	180	46	80.5	49	82
Trans. Light and Live Cell	18	31.7	32.3	190	46	80.5	82	88.5
Live Cell and Fluidics	18	31.7	42.2	255	46	80.5	107	116
Trans. Light	18	31.7	32.3	190	46	80.5	82	88.5
Live Cell	18	31.7	19.4	180	46	80.5	49	8
